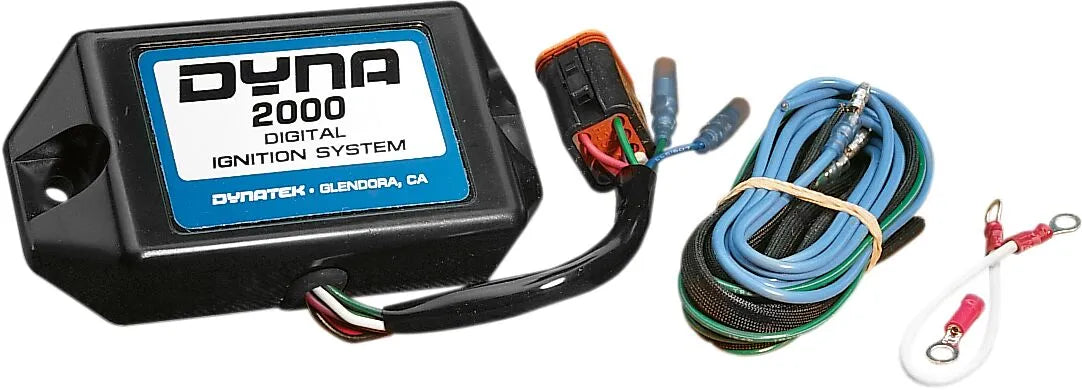

Dynatek 2000-hde Programmable Digital Ignition Module

The Dynatek 2000-HDE PC-Programmable Digital Ignition Module is a powerful upgrade for late-model Harley-Davidson motorcycles. This micro-computer controlled ignition system provides precise control over the entire ignition process, allowing riders to fine-tune their engine's performance. With its advanced features and programmability, the Dynatek 2000-HDE unlocks the full potential of your Harley.

Description

This digital ignition module allows you to tailor the advance curve and rev limiter to perfectly match your engine's specific needs. It features four pre-programmed advance curves, covering a wide range of engine configurations from stock to highly modified. You also get four independent rev limiter settings, ranging from 6000 to 7500 RPM, ensuring optimal protection for your engine. PC programmability takes it even further, allowing you to define custom wide-open throttle and part-throttle curves, set rev limits, adjust dead-cranking revs, and fine-tune rear cylinder offset. The module includes a separate tach output wire for clean tachometer operation during rev limiting and in single-fire mode. A built-in diagnostic LED simplifies troubleshooting and static timing adjustments. Built with quality and performance in mind, this Dynatek ignition module maximizes your Harley's power and responsiveness.

Features & highlights

• Provides precise ignition control for optimal engine performance.
• Offers four built-in advance curves for various engine configurations.
• Features four independent rev limiter choices from 6000 to 7500 RPM for engine protection.
• PC programmability enables custom tuning of advance curves, rev limits, and more.
• Includes a separate tach output wire for clean tach operation.
• Diagnostic LED simplifies troubleshooting and static timing.
• Proudly made in the USA.

Technical specifications

• Brand: Dynatek
• Part Number: 21010045
• Color/Finish: Black
• Connection Type: 8 Pin
• Ignition Fire Method: Dual, Single
• Type: Ignition Module

Important to know

This ignition module is designed for carbureted Harley-Davidson models only and is not compatible with fuel-injected models. It is essential to use carbon fiber-type suppression spark plug wires to minimize radio frequency interference. Copper wires may cause ignition malfunction due to electrical noise. HDE systems are not compatible with Dyna "S" systems; use HD1/HD2 systems only.
