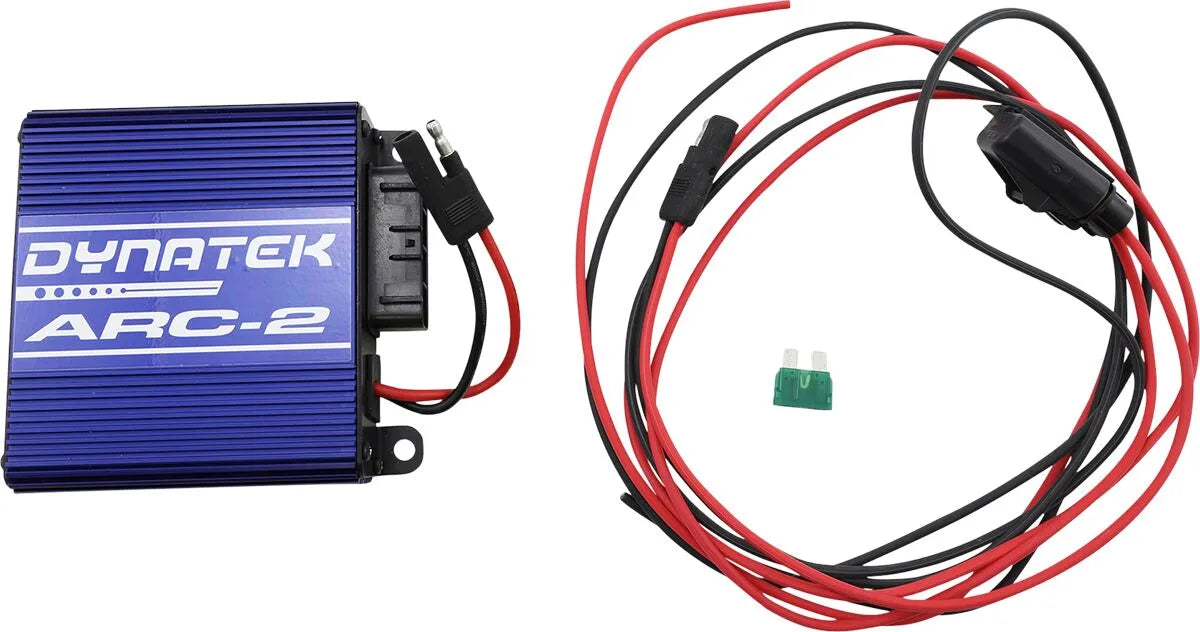

Dynatek Arc-2 Cdi Box - High Performance Ignition System

Unleash the full potential of your engine with the Dynatek ARC-2 CDI Box. This compact and powerful CDI (Capacitive Discharge Ignition) unit delivers unmatched spark energy and advanced features to optimize your motorcycle's performance. Experience improved throttle response, increased horsepower, and consistent ignition across the RPM range.

Description

The Dynatek ARC-2 CDI Box is the smallest and lightest CDI on the market, designed for easy installation and maximum performance. Its simplified plug-in harnesses eliminate the need for tach adapters, streamlining the installation process. The ARC-2 delivers over 189 mJ of energy to the coil per spark, providing the highest output available. With over 500V to the coil primary and over 50kV to the coil secondary (assuming a 100:1 coil), this CDI ensures a powerful and reliable spark. Intelligent Spark Profiling (ISP) minimizes delay between successive sparks, optimizing combustion. The spark restrike capability up to 4500 rpm further enhances low-end performance. The ARC-2 works with any 2-coil OEM ignition system, even those with or without a factory ignitor (some systems may require replacement coils). A built-in launch limiter, adjustable from 2,000 to 11,900 rpm, helps you achieve optimal launches. Additionally, a built-in fixed timing retard function and tach output are included for advanced tuning capabilities. Upgrade your ignition system today with the Dynatek ARC-2 CDI Box and experience the difference.

Features & highlights

• Experience the smallest and lightest CDI on the market for enhanced performance.
• Enjoy easy installation with simplified plug-in harnesses (no tach adapters needed).
• Maximize spark energy with over 189 mJ delivered to the coil per spark.
• Optimize combustion with Intelligent Spark Profiling (ISP) for reduced delay.
• Achieve superior launches with the built-in launch limiter (2,000-11,900 rpm).
• Customize your timing with the built-in fixed timing retard function.
• Benefit from high level of output from as low as 8V from the battery.

Technical specifications

• Brand: Dynatek
• Part Number: 21010146
• Color/Finish: Blue
• Ignition Type: Electronic
• Type: Ignition
• Dimensions: 4" x 4.6" x 1.4"

Important to know

A specific or universal installation kit is required and sold separately. Some OEM systems may require replacement coils.
