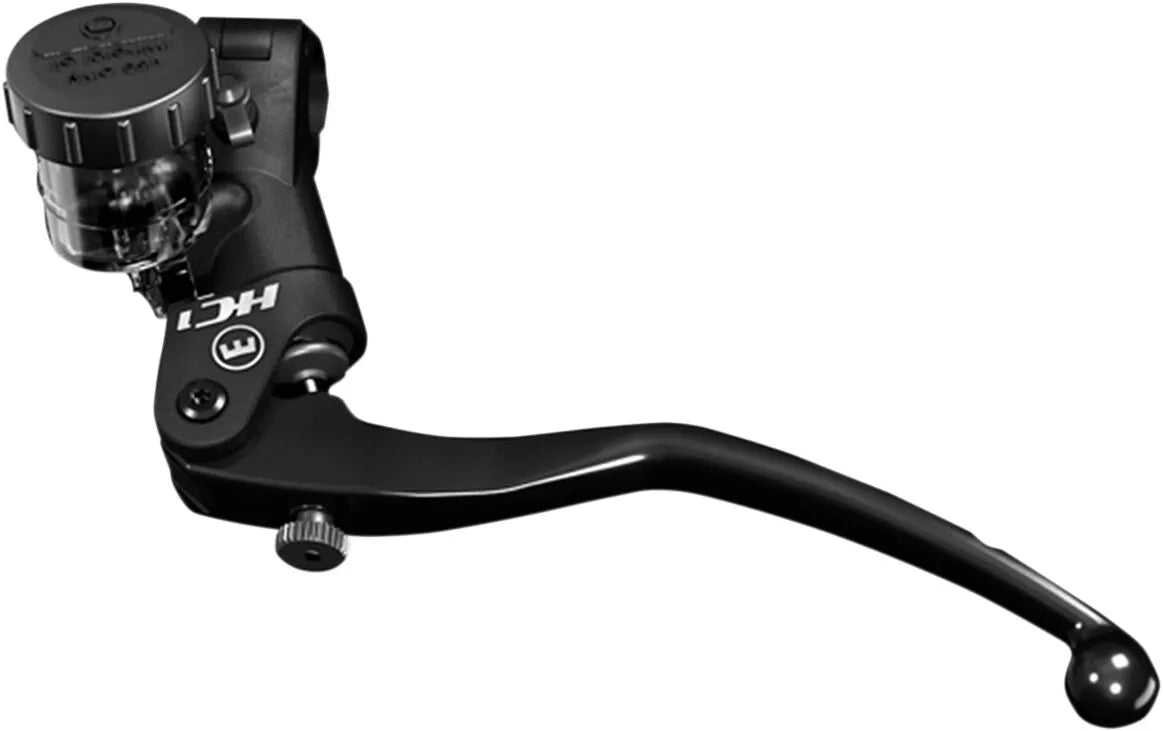

Magura Hc1 Clutch Master Cylinder - 16mm

The Magura HC1 Clutch Master Cylinder is engineered for superior performance and control. This assembly delivers a direct clutch feeling and enhanced modulation, improving your riding experience on the track or street.

Description

The Magura HC1 Clutch Master Cylinder sets a new standard in hydraulic clutch control. Featuring an advanced X-Ring seal design, the HC1 eliminates air introduction, a common issue in high-RPM racing motorcycles. The master cylinder's pushrod and cylinder are angled at 70° to the handlebar, reducing friction and providing a more direct clutch feeling for improved control. The external reservoir is designed for minimum space usage and includes smoked glass, allowing for easy monitoring of brake fluid level and condition. Approved for continuous use with all ABS systems without performance loss due to pressure compensation, the Magura HC1 delivers consistent and reliable clutch actuation.

Features & highlights

• Advanced X-Ring seal design prevents air introduction at high RPM.
• 70° pushrod angle reduces friction and enhances clutch feel.
• External reservoir with smoked glass for easy fluid monitoring.
• Approved for continuous use with ABS systems.
• Compact design for minimal space usage.
• Includes banjo bolt with sealing rings, remote reservoir, and standard clamp.

Technical specifications

• Brand: MAGURA
• Actuation: Hydraulic
• Base Color: Black
• Finish: Polished
• Clutch Master Cylinder Bore Diameter: 16 mm (5/8")
• Color/Finish: Black, Polished
• For Braking System: ABS
• Material: Aluminum, Glass
• Product Name: Lever Assembly
• Type: Clutch, Master Cylinder

Important to know

Ready-to-mount HC1 includes banjo bolt with sealing rings (M10x1), remote reservoir, standard clamp (without mirror mount), brake light or start safety switch, ABE for brake fitments and owner‘s manual.
