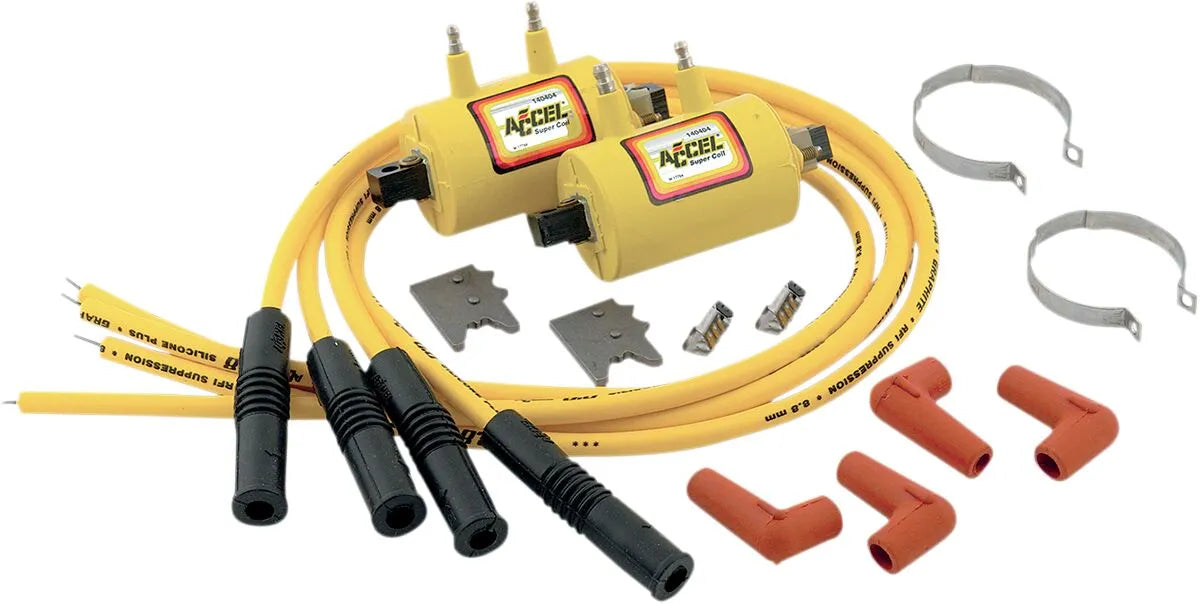

Accel Universal Super Coil Kit - 2 Cylinder

Upgrade your two-cylinder motorcycle's ignition system with the Accel Universal Super Coil Kit. These high-output coils are engineered to deliver maximum performance and reliability. Designed with a special low-resistance primary winding, these coils are perfectly matched to the operating characteristics of both factory and aftermarket CDI systems.

Description

The Accel Universal Super Coil Kit provides a significant boost in performance for your two-cylinder motorcycle. Experience faster rise times and a more powerful spark, resulting in improved throttle response, increased horsepower, and enhanced overall engine performance. These coils are designed for durability and longevity, ensuring reliable operation under demanding conditions. The included extra-heavy-duty 8.8 mm silicone wires provide excellent conductivity and insulation, further enhancing the performance and reliability of your ignition system. Made in the U.S.A., these coils meet the highest standards of quality and performance. Easy to install, the Accel Universal Super Coil Kit is the perfect upgrade for any enthusiast looking to maximize their motorcycle's potential.

Features & highlights

• High-output coils designed for 2-cylinder motorcycles.
• Low-resistance primary winding optimized for CDI systems.
• Delivers maximum performance with fast rise times.
• Includes extra-heavy-duty 8.8 mm silicone wires for superior conductivity.
• Made in the U.S.A. for exceptional quality and reliability.
• Improves throttle response, horsepower, and overall engine performance.

Technical specifications

• Brand: Accel
• Part Number: 140404
• Color/Finish: Yellow
• Electrical Resistance: 0.7 Ohms
• Ignition Fire Method: Dual
• Ignition Type: Electronic (Capacitor Discharge)
• Input Voltage: 12 V
• Product Name: Coil
• Type: Ignition
• Units: Kit

Important to know

Important Note: Using the wrong coil may damage your motorcycle's electronic ignition module. This coil kit is designed for motorcycles with CDI ignition systems.

Compatibility Check:

1. Verify that the coil you are replacing is a high-tower coil. (These coils will NOT replace single-tower coils.)
2. Using a voltmeter or 12V test light, connect the positive lead to the positive post and the negative lead to the ground on one of the stock coils.
3. Turn the ignition ON, but DO NOT engage the starter button.
4. If there are 12V at the coil, the motorcycle has an inductive-type ignition. If there is no voltage at the coil, the motorcycle has a CDI ignition.
