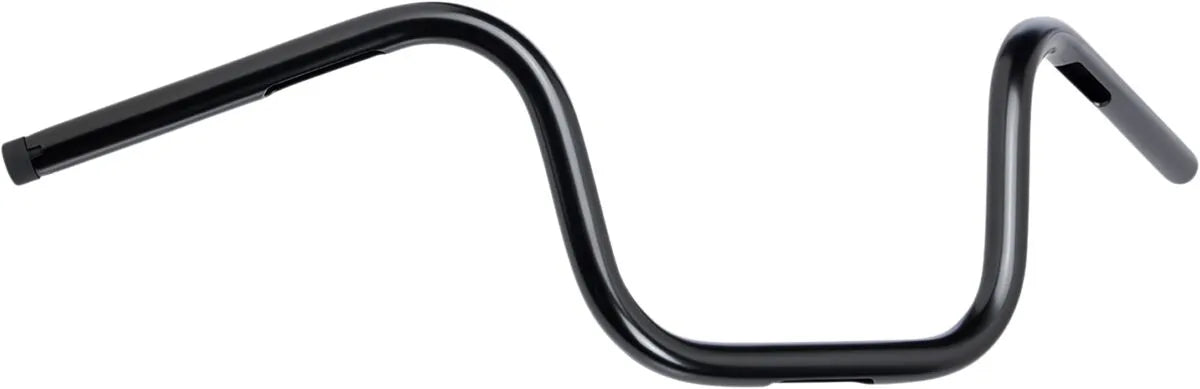

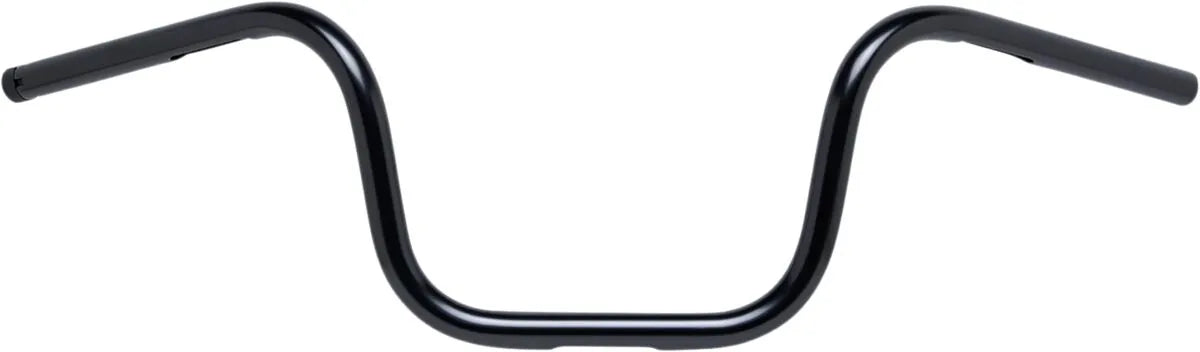

Biltwell Chumps Handlebar - 1" - 6" Rise - Black - 6005-2017

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for superior performance and compatibility. This handlebar combines robust construction with intelligent features, making it an excellent choice for both custom builds and replacing stock components. Experience enhanced control and a sleek aesthetic with this premium handlebar.

Description

Crafted from seamless, thick-walled 0.120" (3 mm) 4130 chromoly, the Biltwell 1" Handlebar ensures exceptional durability and strength. Precision mandrel-bent tubing guarantees accurate alignment and comfortable ergonomics. This handlebar features milled slots on the bar ends and clamping area, facilitating clean internal wire routing for a streamlined look. The notched and internally tapered right-side bar end is specifically designed to accept the Harley Throttle-By-Wire (TBW) control module, offering seamless integration. Precision mitered and TIG welded tube joints provide superior strength and a clean finish. The included injection-molded, reinforced nylon plug in the bar end on the throttle side allows the handlebar to work with select stock and aftermarket single- and dual-cable throttles. Simply remove the plug for Throttle-By-Wire compatibility.

Features & highlights

• Constructed from high-strength 0.120" (3 mm) thick 4130 chromoly steel for maximum durability.
• Precision mandrel bends ensure accurate alignment and comfortable ergonomics.
• Milled slots allow for clean and easy internal wiring, enhancing the motorcycle's aesthetics.
• TBW compatible: Notched and tapered right-side bar end seamlessly integrates with Harley Throttle-By-Wire systems.

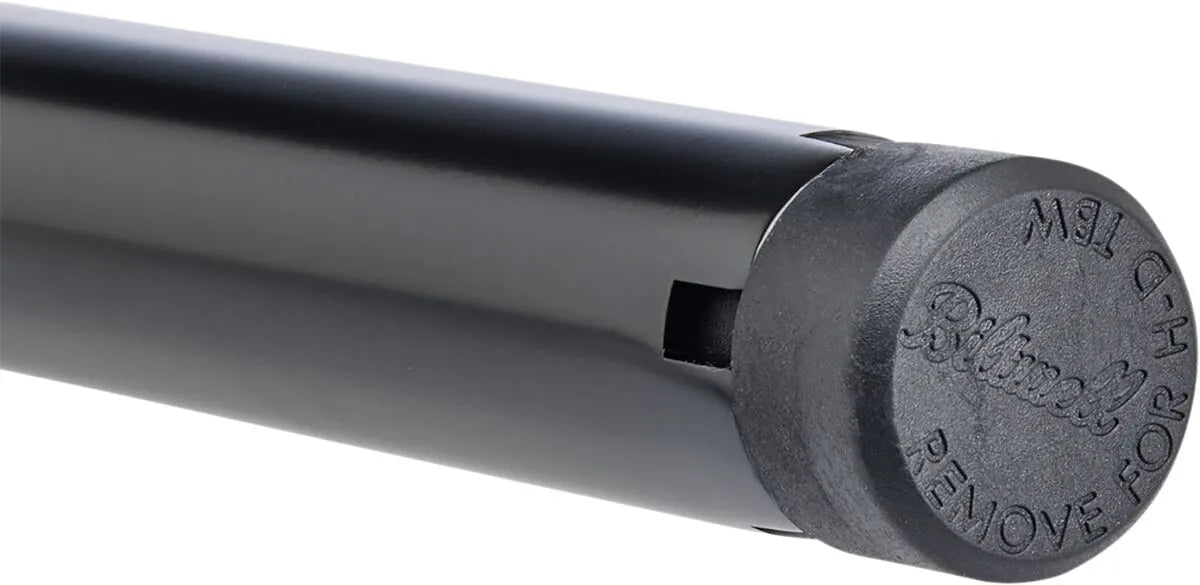

• Includes removable nylon plug for compatibility with both cable and Throttle-By-Wire throttle systems.
• Features precision mitered and TIG welded tube joints for superior strength and a clean, professional finish.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Chumps
• Material: Chromoly
• Handlebar Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Color/Finish: Black
• Width: 30-1/2" (77.5 cm)
• Height: 8" (20.5 cm)
• Rise: 6" (15 cm)
• End Rise: 6" (15 cm)
• Pullback/Sweep: 6-1/2" (16.5 cm)
• Center Width: 4-3/4" (12 cm)
• Features: Cable Throttle Application, Slotted, Notched for Throttle-By-Wire

Important to know

Ensure compatibility with your motorcycle's make and model before installation. Professional installation is recommended.
