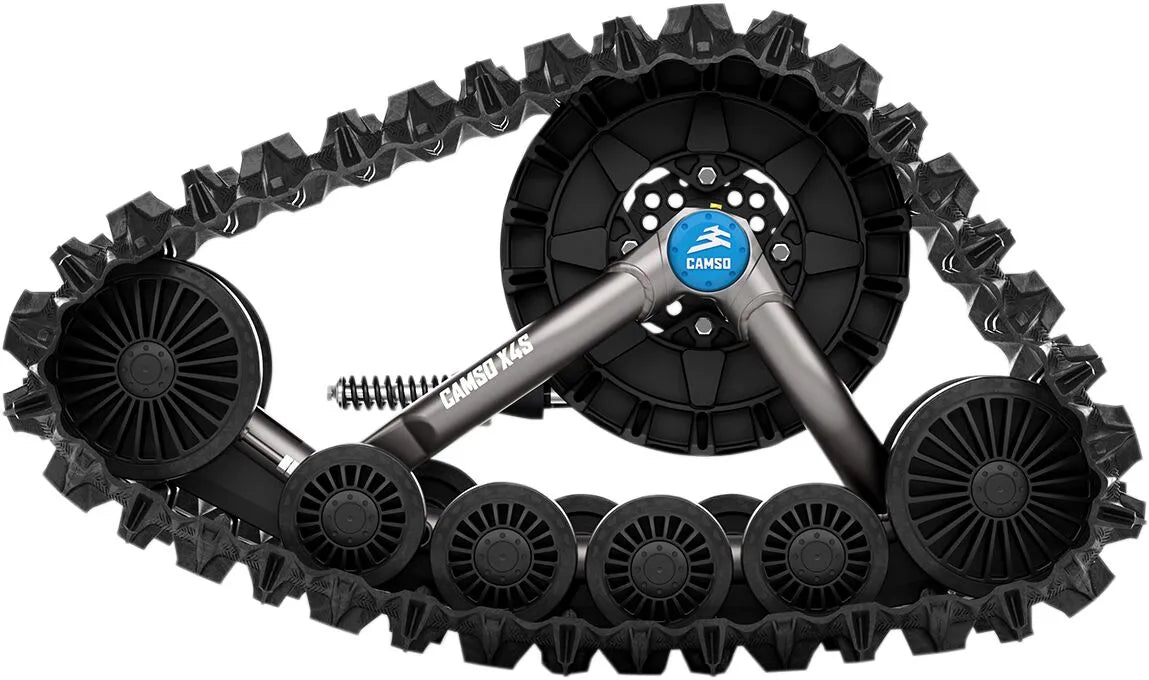

Camso X4S 4-Tracks Undercarriage Track System for ATV

Elevate your off-road experience with the Camso X4S ATV Track System. This advanced 4-track undercarriage kit transforms your all-terrain vehicle, delivering unparalleled versatility and superior handling across diverse landscapes, all year long.

Description

The Camso X4S Undercarriage Track System represents the next generation of ATV track technology, engineered for ultimate performance. Designed to provide exceptional versatility, stability, and handling, this system ensures your ATV conquers any terrain, from mud and snow to sand and rock, throughout every season. The kit includes four robust tracks, ready to enhance your vehicle's capabilities. Featuring a new geometry solid steel frame, the X4S significantly improves front steering and overall handling, offering precise control even in challenging conditions. The idler and mid-roller wheels are built for durability and ease of maintenance, boasting an increased width of 26 mm to provide superior track support and extended lifespan. Double bearing bolted wheels further simplify serviceability, while standard and replaceable sealed bearings ensure economic maintenance over time. With an impressive Ground Surface of 1.30 m² (2000 square inch) and a substantial Ground Clearance of 39 cm (15-3/8"), the X4S offers superior flotation and the ability to navigate obstacles with confidence. The optimized track dimensions, including a Front Track Width of 29.2 cm (11-1/2") and Rear Track Width of 31.8 cm (12-1/2"), along with Tooth Counts of 15 and 18, ensure maximum traction and stability across varied surfaces.

Features & Highlights

• Experience ultimate versatility and handling on any terrain, year-round, thanks to the next-generation Camso X4S design.
• Enhanced stability and flotation provided by a substantial 1.30 m² (2000 square inch) ground surface and optimized track dimensions.
• Improved front steering and precise control, engineered with a new geometry solid steel frame.
• Durable and low-maintenance idler and mid-roller wheels featuring increased 26 mm width for superior track support.
• Economical serviceability with double-bearing bolted wheels and standard, replaceable sealed bearings.

Technical Specifications

• Type: Track System
• Units: Set
• Product Name: Undercarriage
• Front Track Length: 237.2 cm (93-3/8")
• Rear Track Length: 250.2 cm (98-1/2")
• Front Track Width: 29.2 cm (11-1/2")
• Rear Track Width: 31.8 cm (12-1/2")
• Front Height: 60.45 cm (23-13/16")
• Rear Height: 58.93 cm (23-3/16")
• Ground Clearance: 39 cm (15-3/8")
• Ground Surface: 1.30 m² (2000 square inch)
• Tooth Count: 15, 18
• Vendor Part Number: P242-XX-1817
• EAN: 45101426

Important to Know

• An adapter kit is required for mounting this track system to your specific vehicle (not included).
