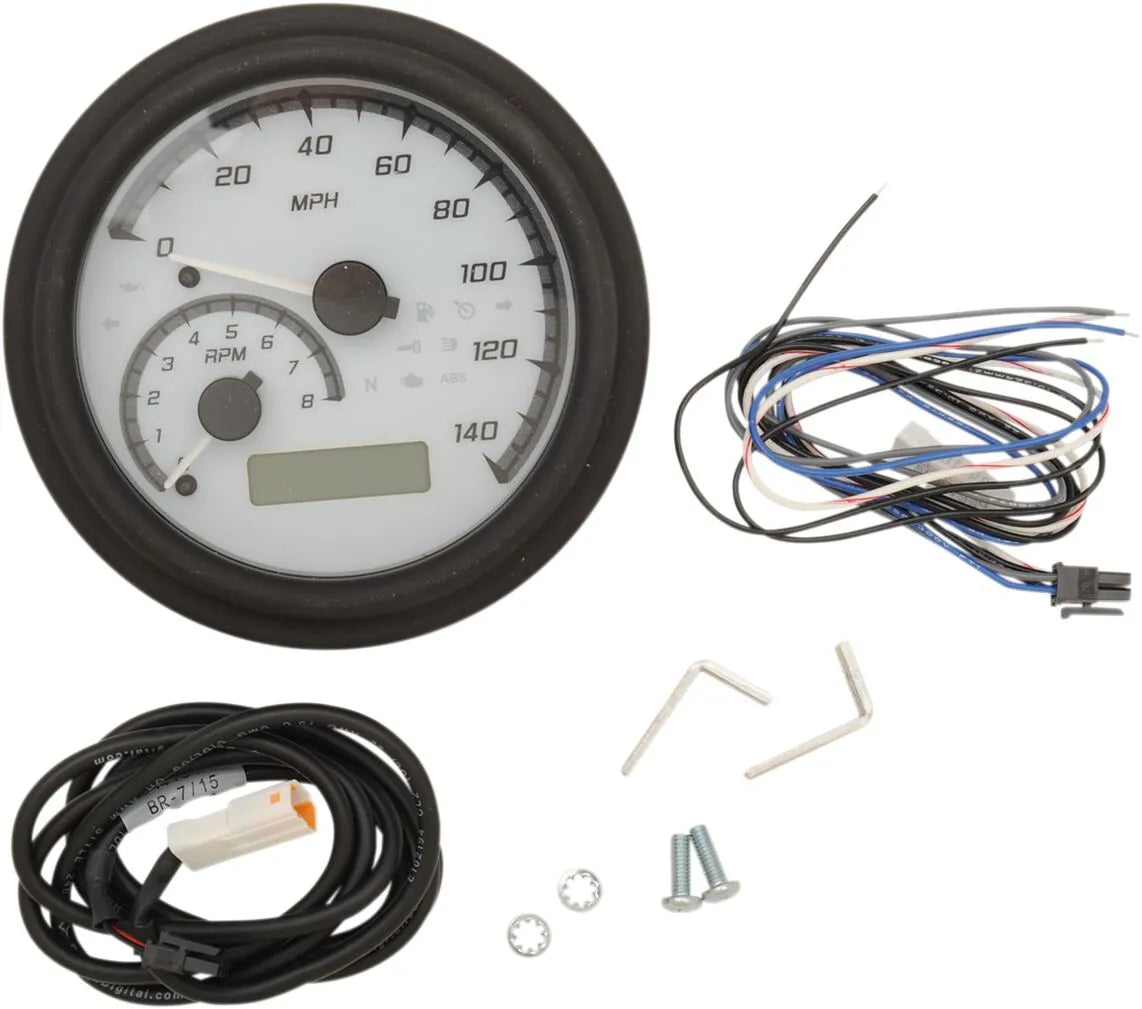

Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2011-WG-K

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This comprehensive gauge system provides vital information at a glance, combining classic analog style with modern digital functionality. Get accurate readings and customizable displays to enhance your riding experience.

Description

The Dakota Digital MVX Series analog speedometer system provides a wealth of information in a stylish and easy-to-read package. Featuring a 140 mph speedometer, 8,000 rpm tachometer, odometer, and dual resettable trip meters, this gauge system offers comprehensive monitoring of your motorcycle's performance. The system also includes a full indicator light complement for turn signals, high beam, neutral, and low oil pressure. Models from '99-'03 offer seven user-selectable colors, while '11-'22 models boast 31 user-selectable colors for the pointer, backlight, and LCD message center. The system includes useful features such as a resettable miles to service with a warning, an hour meter, a clock function, and a voltage readout with a low-voltage alert. It can also display cylinder head temperature (if equipped with factory sender) and features a gear position indicator compatible with 3- to 7-speed transmissions. Performance calculations, such as 0-60 time, top speed, peak rpm recall, and 1/4 mile time and speed, are also available. The Dakota Digital MVX series combines essential functions, customizable options and precise measurement.

Features & highlights

• Combines analog gauges with digital displays for comprehensive monitoring.
• User-selectable colors for pointer, backlight, and LCD message center (7 colors for '99-'03 models, 31 colors for '11-'22 models).
• Provides essential information including speed, RPM, odometer, trip meters, and indicator lights.
• Offers performance calculations such as 0-60 time, top speed, and quarter-mile time.
• Features resettable miles to service, hour meter, clock, and voltage readout.
• Compatible with 3- to 7-speed transmissions with gear position indicator.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Speedometer: 140 mph
• Tachometer: 8,000 rpm
• Face Color: White, Gray
• Housing Color: Black
• Outside Diameter: 4-5/8" (11.8 cm)
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Features: Backlit, 31 User-Selectable Colors

Important to know

• Oil pressure sending unit sold separately (part #s 2212-0513 or DS-250019).
• Cylinder head temperature sensor requires factory sender unit.
• Wiring installation requires cut/splice and is not a direct plug-in gauge.
