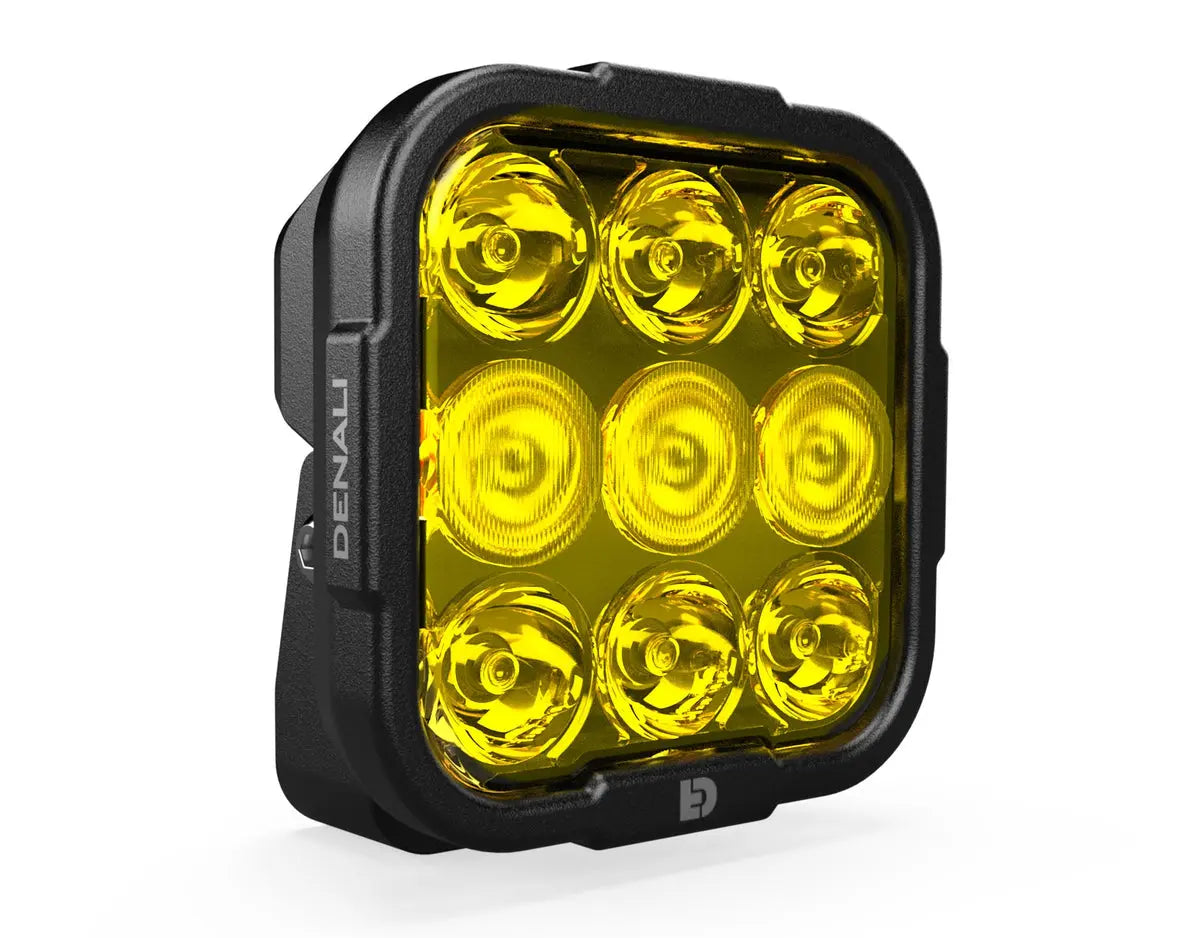

Denali DL9 LED Hybrid Driving Light Pod - Yellow Lens - DNL.DL9.050.Y

The Denali DL9 Hybrid Driving Light delivers an impressive amount of light in a compact and durable package. Featuring top-bin CREE LEDs and advanced TIR optics, these lights are designed for riders and drivers who demand the best in performance and reliability. Built to withstand the rigors of off-road adventures and everyday use, the DL9 provides exceptional visibility and safety.

Description

The Denali DL9 Hybrid Driving Lights leverage high-intensity CREE XPL HI LEDs, driven at 8 watts each, to produce a powerful and precisely focused beam. Denali's proprietary Total Internal Reflection (TIR) optics maximize light output, delivering both exceptional distance (up to 1835' or 560m per pair) and a wide beam (478' or 146m per pair). The lights feature DataDim™ technology, enabling seamless dimming via Denali light harnesses, DialDim, and CANsmart Controllers. The robust design incorporates a 4mm thick powder-coated steel bracket, a high-efficiency heatsink, and a UV-coated polycarbonate lens, ensuring long-lasting performance and reliability. The DrySeal™ construction guarantees 100% waterproof performance, even with connectors removed.

Features & highlights

• High-output CREE XPL HI LEDs produce 15,300 lumens per pair for exceptional visibility.
• Advanced TIR optics provide a perfectly blended hybrid driving beam with unmatched distance and width.
• DataDim™ compatibility allows for easy dimming and integration with Denali lighting accessories.
• DrySeal™ construction ensures complete waterproof and submersible performance.
• Overbuilt design with robust heatsink and UV-coated lens for maximum durability.
• Compact 4.5" x 4.5" square pod design fits a wide range of vehicles and applications.

Technical specifications

• LEDs: Cree XPL HI (8W each)
• Operating Voltage: 9-32 VDC
• Power Draw: 72W (Single) | 144W (Pair)
• Amp Draw: 6A (Single) | 12A (Pair)
• Raw Lumens: 7,650 (Single) | 15,300 (Pair)
• Beam Distance: 1380' (421m) (Single) | 1835' (560m) (Pair)
• Beam Width: 360' (110m) (Single) | 478' (146m) (Pair)
• Color Temperature: 6000K
• Connector: DataDim Compatible 3-wire DT
• Pod Size: 4.5" x 4.5" Rectangle x 2" Deep

Important to know

• Requires a compatible Denali light harness, DialDim, or CANsmart Controller for dimming functionality.
