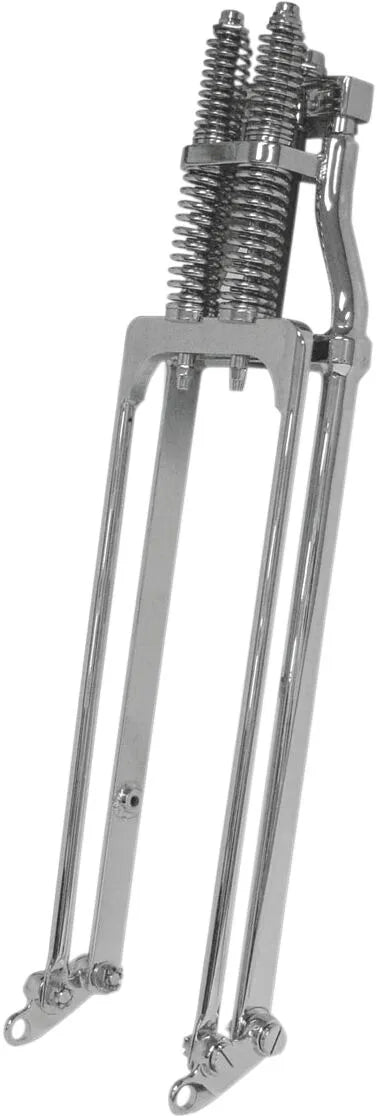

Drag Specialties Custom Springer Forks

Upgrade your ride with the Drag Specialties Custom Springer Forks. This fully assembled springer front end offers an economical alternative to shock-dampened types, providing a classic look and reliable performance. Enhance your motorcycle's aesthetics and handling with this high-quality, custom-built springer fork.

Description

The Drag Specialties Custom Springer Forks are engineered to deliver a unique blend of vintage style and modern functionality. Fully assembled with an in-line top bracket and without a built-in rake, this springer front end provides a distinctive appearance. The standard length, measuring 31" from the top bearing to the axle, is comparable to a standard-length FXST front end. Designed with a 1" O.D. steering stem compatible with Timken® type bearings, it ensures smooth and stable steering. Both rear legs are threaded to accommodate right or left brakes, offering versatile braking options. The included 3/4" O.D. axle kit features a brake mount pivot with thrust washer and hub spacers, though custom spacers may be needed based on the wheel you use. With 9-1/4" between Rockers and riser mounts on 4-3/4" centers, threaded 1/2"-20, these forks offer a robust and customizable front-end solution.

Features & highlights

• Economical alternative to shock-dampened Springer forks, offering classic style at a great value.
• Fully assembled with an in-line top bracket for easy installation.
• Standard 31" length comparable to standard FXST front ends.
• 1" O.D. steering stem designed for Timken® type bearings ensures smooth steering.
• Both rear legs are threaded for versatile brake mounting options.
• Includes a 3/4" O.D. axle kit with brake mount pivot, thrust washer, and hub spacers.

Technical specifications

• Brand: Drag Specialties
• Color/Finish: Chrome
• Product Name: Springer
• Steering Stem O.D.: 1"
• Length: 31" (from top bearing to axle)
• Distance Between Rockers: 9-1/4"
• Riser Mount Centers: 4-3/4"
• Riser Mount Thread: 1/2"-20
• Axle Diameter: 3/4"

Important to know

Requires a wheel compatible with a 3/4" O.D. axle. Custom spacers may be required depending on the wheel used. These Springers are measured from the bottom of the top tree to the center of the axle. Spotlight bars and fender mounts are not compatible with these springer forks.
