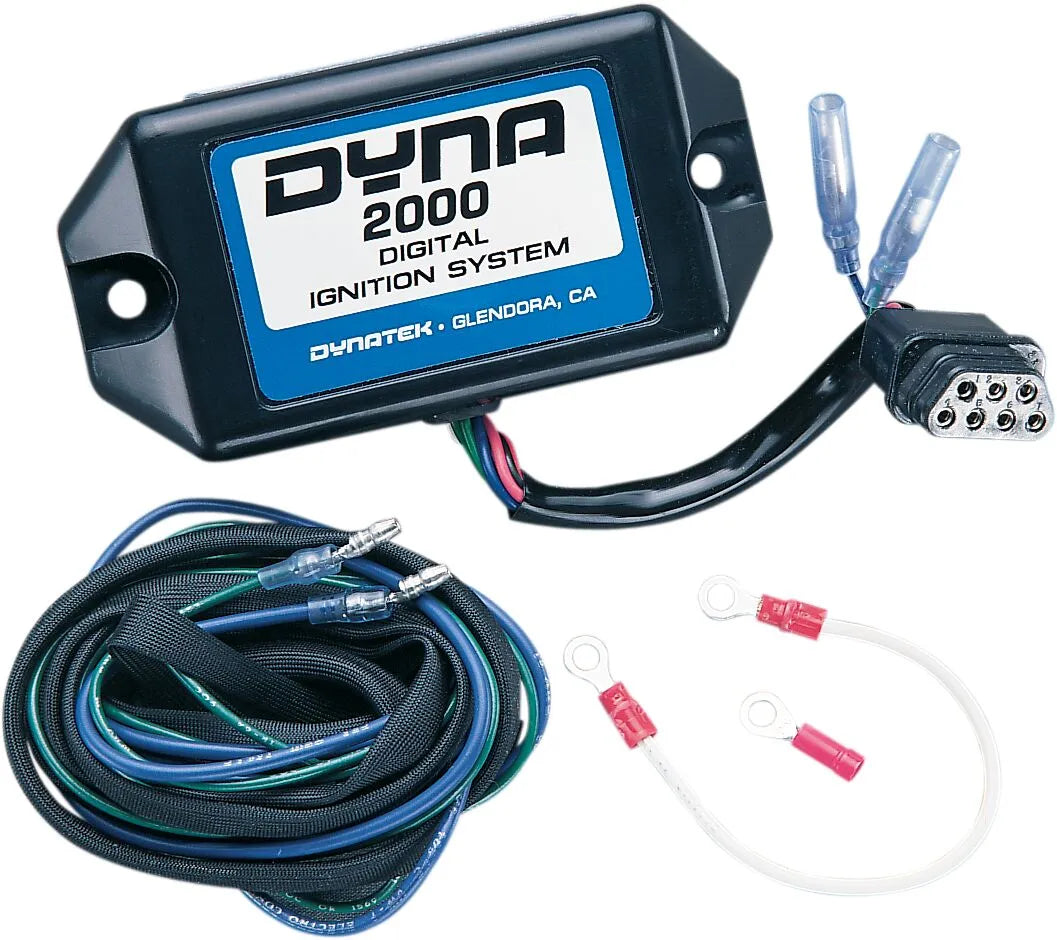

Dynatek 2000-hde Pc-programmable Digital Ignition Module

The Dynatek 2000-HDE is a PC-programmable digital ignition module designed as a plug-in upgrade for late-model Harley-Davidson motorcycles. This advanced ignition system provides precise control over the entire ignition process, optimizing engine performance and reliability.

Description

This Dynatek ignition module allows riders to fine-tune the advance curve and rev limiter to match their engine's specific requirements. It features four pre-programmed advance curves suitable for engines ranging from stock to highly modified, ensuring optimal performance across diverse operating conditions. Four independent rev limiter settings, ranging from 6000 to 7500 RPM, provide precise engine protection. PC programmability enables users to customize wide-open throttle and part-throttle curves, rev limits, dead-cranking revs, and rear cylinder offset for unparalleled control. A dedicated tach output wire ensures accurate tachometer operation during rev limiting and in single-fire mode. A diagnostic LED indicator simplifies troubleshooting and static timing adjustments. Made in the USA, the Dynatek 2000-HDE delivers quality and performance you can trust. Upgrade your Harley's ignition system with Dynatek for enhanced power and responsiveness.

Features & highlights

• Provides precise ignition control for enhanced engine performance.
• Offers four built-in advance curves for various engine modifications and operating conditions.
• Features four independent rev limiter choices from 6000 to 7500 RPM for customized engine protection.
• Enables PC programmability for defining wide-open and part-throttle curves, rev limits, and more.
• Includes a separate tach output wire for clean tach operation.
• Equipped with a diagnostic LED indicator for easy troubleshooting and static timing.
• Made in the USA.

Technical specifications

• Brand: Dynatek
• Part Number: 21010043
• Color/Finish: Black
• Connection Type: 7 Pin
• Ignition Fire Method: Dual, Single
• Type: Ignition Module

Important to know

This ignition module is not compatible with fuel-injected models or Dyna "S" systems. HDE systems are only compatible with HD1/HD2 systems. To reduce radio frequency interference, carbon fiber-type suppression spark plug wires must be used. Use of copper wires may cause ignition malfunction due to electrical noise. The original Harley-Davidson wires are typically suitable.
