Feuling Twin Cam HP+ Chain Drive Conversion Kit - 7220

Upgrade your early Twin Cam engine with the Feuling Parts HP+ Chain Drive Conversion Kit. This comprehensive kit replaces your old mechanical cam and tensioner setup with a modern hydraulic tensioner system, delivering enhanced performance and reliability.

Description

The Feuling HP+ Chain Drive Conversion Kit is designed to significantly improve the oil pressure and cooling efficiency of your '99-'06 Twin Cam engine (excluding '06 Dyna). Expect to see 15-30 PSI more oil pressure, and 25°-35° cooler engine temperatures. This kit effectively eliminates wet sumping, blow-by, and oily air cleaners, ensuring a cleaner and more efficient engine operation. The conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals, allowing the use of '07-'16 cam plates, oil pump, hydraulic chain tensioners, and chain drive system. This means increased reliability and performance for your motorcycle. Installation is streamlined with quick-install adjustable pushrods, making the upgrade process straightforward for experienced mechanics.

Features & highlights

• Achieve 25°-35° cooler engine temperatures for improved performance and longevity.
• Experience 15-30 PSI increase in oil pressure, ensuring optimal engine lubrication.
• Effectively eliminate wet sumping, blow-by, and oily air cleaners.
• Includes Feuling HP+® high volume oil pump and High Flow cam plate for superior oil circulation.
• Comes with Reaper® series camshafts and HP+ hydraulic roller lifters for enhanced valve train performance.
• Features quick install adjustable pushrods for easy and precise installation.

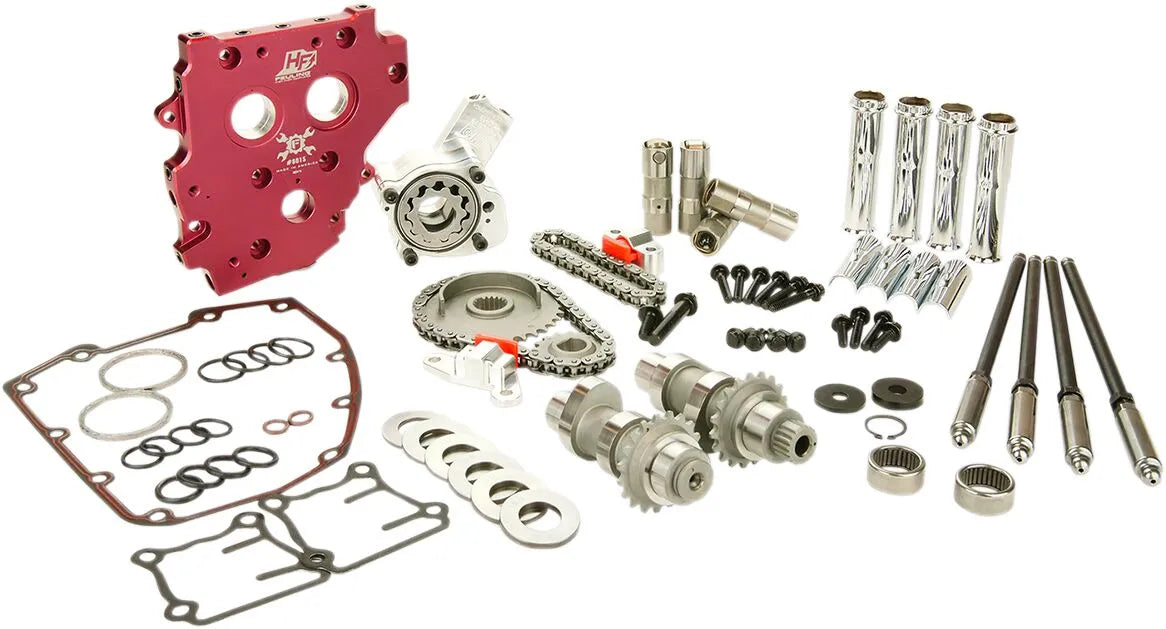

• Complete kit with Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, and all necessary hardware.

Technical specifications

• Brand: Feuling Parts
• Type: Chain Conversion Kit
• Application: Intake, Exhaust
• Cam Grind: 525 Series
• Intake Duration: 226°
• Intake Lift: 0.525"
• Intake Lobe Centerline: 109°
• Intake Open: 4°
• Intake Close: 42°
• Intake Lift at TDC: 0.099"
• Exhaust Duration: 236°
• Exhaust Lift: 0.535"
• Exhaust Lobe Centerline: 113°
• Exhaust Open: 51°
• Exhaust Close: 5°
• Exhaust Lift at TDC: 0.112"
• Includes: Quick Install Adjustable Pushrods

Important to know

• Fits: '99-'06 Twin Cam engines, except for '06 Dyna models.
