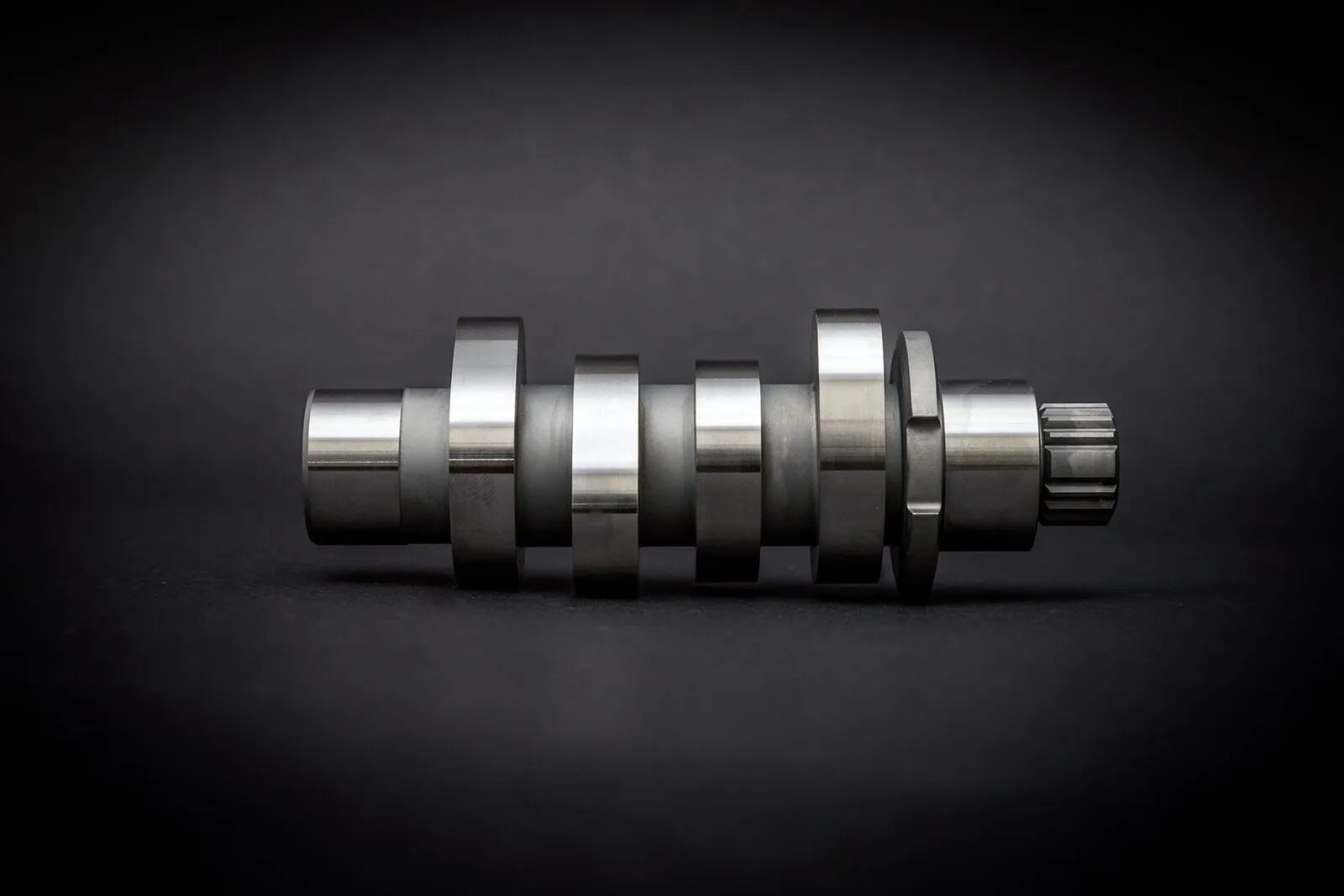

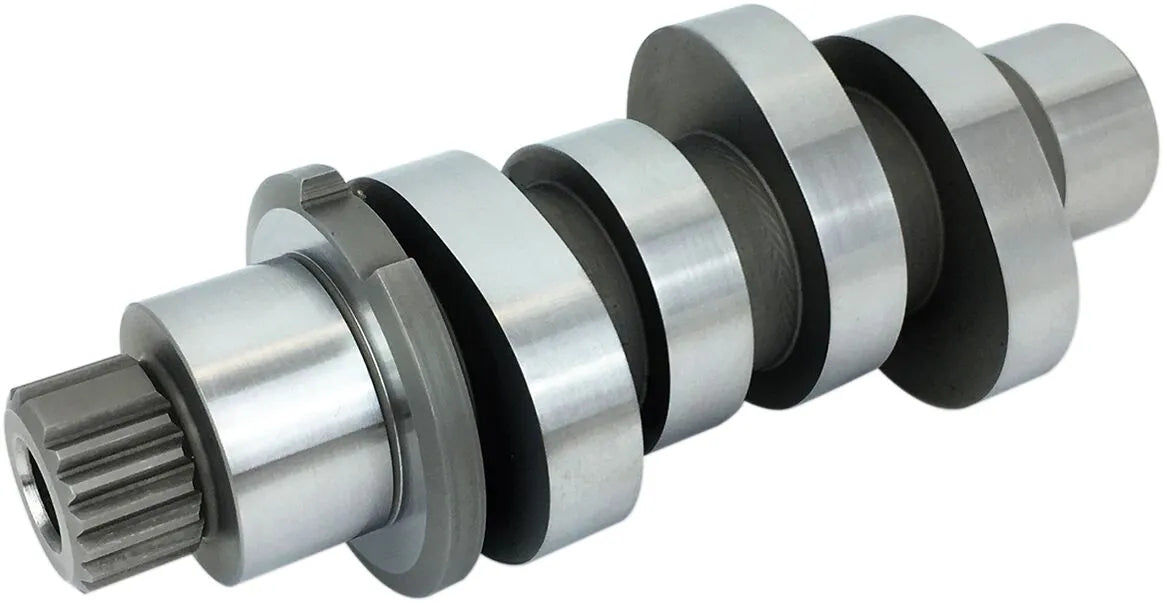

Feuling M8 Reaper 508 Camshaft - 1349

Unleash the true potential of your engine with the Feuling Parts Reaper® 508 Cam. This cam delivers increased power and torque within the usable RPM range, dramatically improving throttle response and acceleration. Experience the raw power and aggressive sound that defines the Grim Reaper series, designed for riders who demand maximum performance.

Description

The Reaper® 508 camshaft revs faster and pulls harder than the 521 grind, offering a more aggressive riding experience. While tuning may be more challenging, the results are well worth the effort. This cam shines in 114" (1.87L) and larger cubic inch engines, especially with added compression. Ported cylinder heads are not strictly required, but they significantly enhance the cam's performance, providing even greater pulling power throughout the RPM range. The stock throttle body provides an excellent powerband, and upgrading to a high-flow throttle body will further increase peak power numbers. Experience the Feuling difference with dyno-proven and track-tested performance.

Features & highlights

• Maximize power and torque for superior throttle response and acceleration.
• Smooth camshaft lobe design minimizes valvetrain noise and wear.
• Aggressive Grim Reaper sound and performance profile.
• Optimized for 114" (1.87L) and larger engines with increased compression.
• Dyno-proven and track-tested for reliability and performance.
• Recommended RPM range: 2250 - 5900 RPM.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Grind: 508 Series
• Type: Chain
• Intake Lift: 0.508"
• Exhaust Lift: 0.511"
• Intake Duration: 237°
• Exhaust Duration: 241.5°
• Intake Open: 20.5°
• Intake Close: 37°
• Exhaust Open: 44°
• Exhaust Close: 17.5°
• Intake Lobe Centerline: 98.5°
• Exhaust Lobe Centerline: 103.25°
• Intake Lift at TDC: 0.180"
• Exhaust Lift at TDC: 0.146"

Important to know

• High-lift valve springs are required.
• Heavy-duty pushrods are highly recommended.
• A high-flow exhaust system and air cleaner are highly recommended for optimal performance.
• Feuling recommends using one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics.
