Jagg Wideline Oil Cooler System

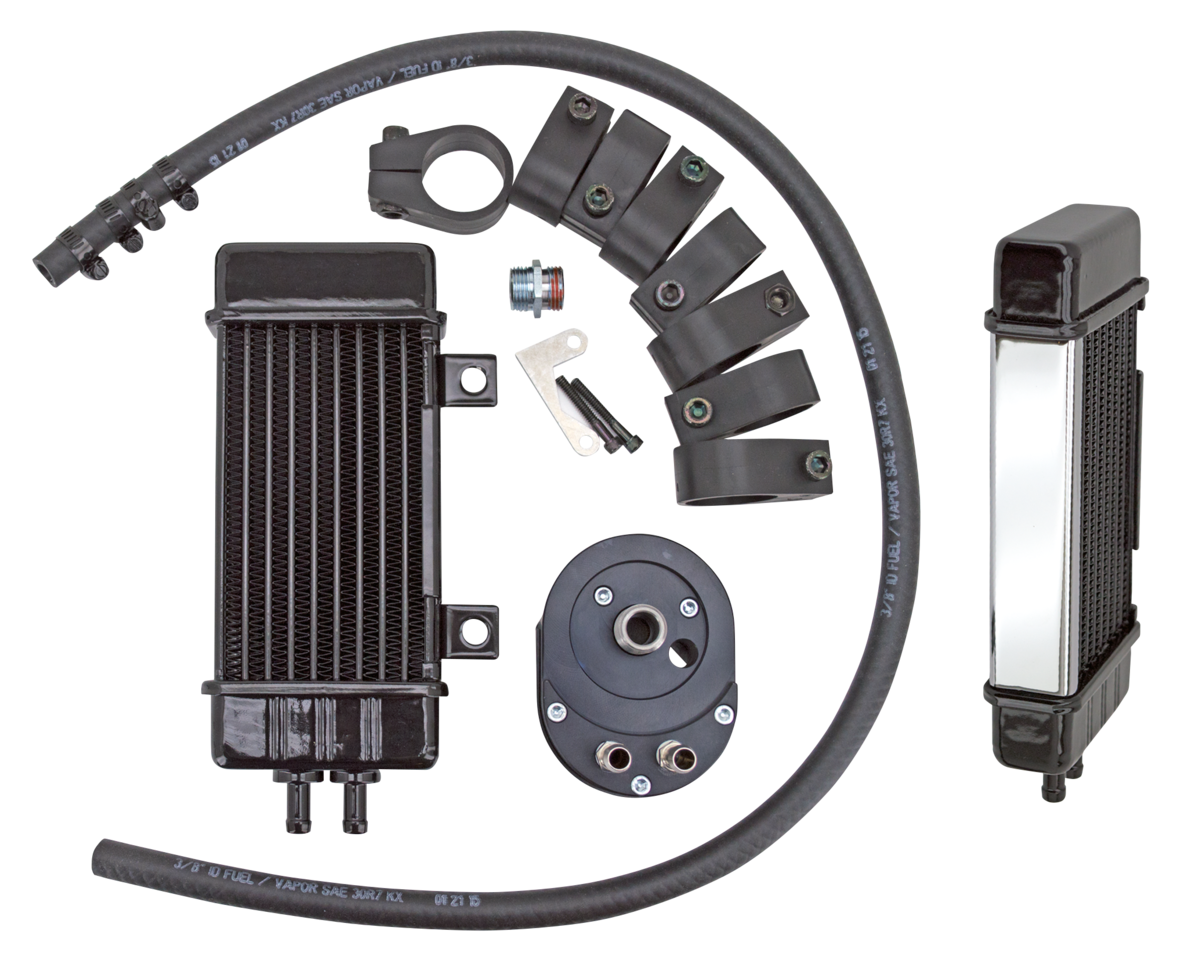

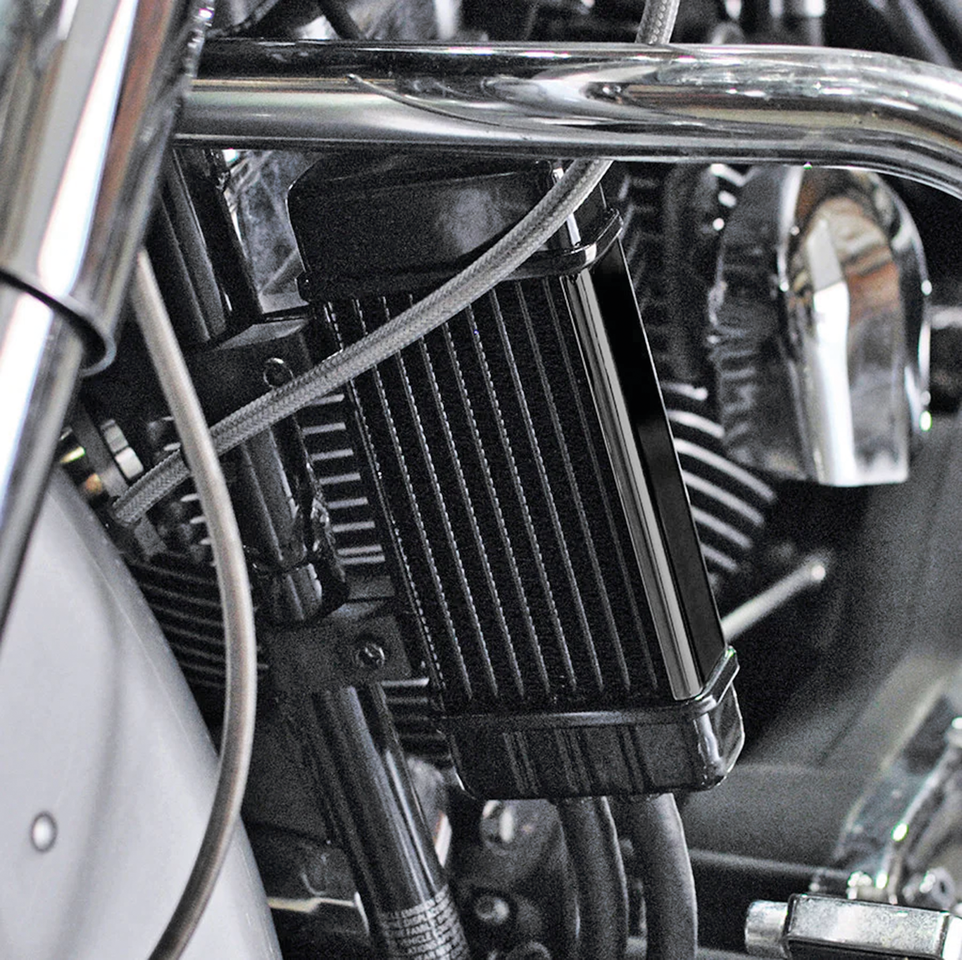

Extreme performance in a compact package, the Jagg WideLine Series 10-row high-performing two-pass oil cooler is engineered to fit all bikes with vertical frame tubes. Specifically designed to exceed the cooling demands of the modern V-Twin motorcycle. The WideLine chrome oil cooler kit integrates a chrome channel along the outer edge of the cooler to complement your engine. The cooler mounts to the left frame down-tube, spaced away from the frame to allow airflow to both the oil cooler and the engine's cylinders. The cooler is mounted to the frame using unique, highly-durable, Uralite mounts, which have a shock absorbing effect and clean styling. The WideLine's 10-tube, two-pass design offers significantly more cooling surface than its closest competitor. Special in-line turbulators add to the cooler's efficiency with minimal oil pressure loss or restriction. Aluminum construction with durable powder coated finish. Kits come with Jagg's unique thermostatically-controlled offset oil filter adapter that provides an easy access point to the bike's oil supply for the installation of the oil cooler. The sandwich-style adapter is machined from two pieces of billet aluminum and then hard anodized to a satin black finish. The adapter installs between the bike's stock oil filter mount and the oil filter, and is designed with the same Hyper Flow Technology as all Jagg components to ensure great performance as well as great flow characteristics. For air cooled Buell, Evolution Sportster and Evolution Big Twin a thermostatic controlled oil filter adapter is available separately.
Note: These coolers do not fit Twin Cooled engines (also known as Mount Rushmore or Water Heads) as used in some Touring and Trike models. They also do not fit models equipped with fairing lowers.

Fits Panhead 1955-1964, Shovelhead 1965-1984, FXR 1982-2000, Softail 1984-2017, Dyna 1991-2017, Touring 1982-2016 & Trike 2009-2016, Complete WideLine oil cooler kit

Jagg H-D Wideline Oil cooler kit

• Category: Oil Cooler
