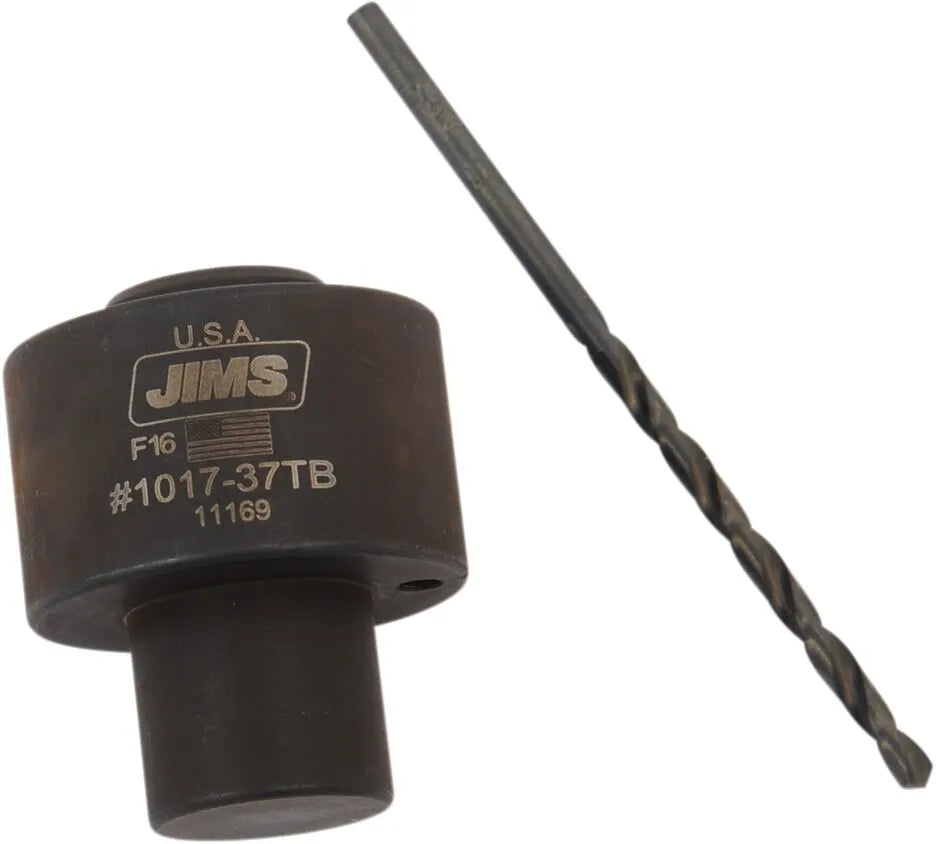

Jims Cam Bushing Installer Drill Jig XL for Harley Davidson

Ensure precise engine assembly with the Jims Cam Bushing Installer Drill Jig XL, an indispensable tool for accurately installing cam bushings and drilling dowel pin holes to factory specifications on your Harley Davidson or Buell motorcycle.

Description

The Jims Cam Bushing Installer Drill Jig XL is engineered for motorcycle technicians and enthusiasts seeking unparalleled accuracy in engine rebuilds. This specialized tool simplifies the critical task of installing cam bushings and simultaneously drilling the necessary dowel pin holes, ensuring every component aligns perfectly to meet original factory specifications. Designed for a wide range of Harley Davidson and Buell models from 1937 to 2017, this jig is a cornerstone for reliable engine maintenance and performance. Its robust construction and precise machining guarantee consistent results, preventing costly errors associated with improper bushing installation. The inclusion of a #31 jobber length HSS drill bit means you have everything you need to get the job done right, the first time. Proudly made in the U.S.A., this Jims specialty tool reflects a commitment to quality and durability, providing lasting value for your workshop.

Features & Highlights

• Factory-Specification Precision: Specifically designed to install cam bushings and drill dowel pin holes with exacting accuracy, ensuring your engine components meet original manufacturer standards for optimal performance and longevity.
• Integrated Dowel Pin Drilling: Streamlines the assembly process by allowing for precise dowel pin hole drilling immediately after bushing installation, eliminating guesswork and potential misalignment.
• High-Quality Drill Bit Included: Comes complete with a durable #31 jobber length HSS (High-Speed Steel) drill bit, providing immediate readiness for your installation tasks without the need for separate purchases.
• Designed for Staking Dowel Pins: Engineered to facilitate the proper staking of dowel pins, securing components firmly and reliably within the engine case.
• Proudly Made in the U.S.A.: Manufactured in the United States, guaranteeing superior craftsmanship, strict quality control, and robust construction for a tool you can trust for years to come.

Technical Specifications

• Brand: Jims
• Part Type: Cam Bushing Installer Drill Jig
• Model/Variant: XL
• Included Accessory: #31 Jobber Length HSS Drill Bit
• Primary Function: Cam Bushing Installation, Dowel Pin Hole Drilling
• Manufacturing Origin: U.S.A.
• Vehicle Compatibility: Harley Davidson, Buell (1937-2017)
