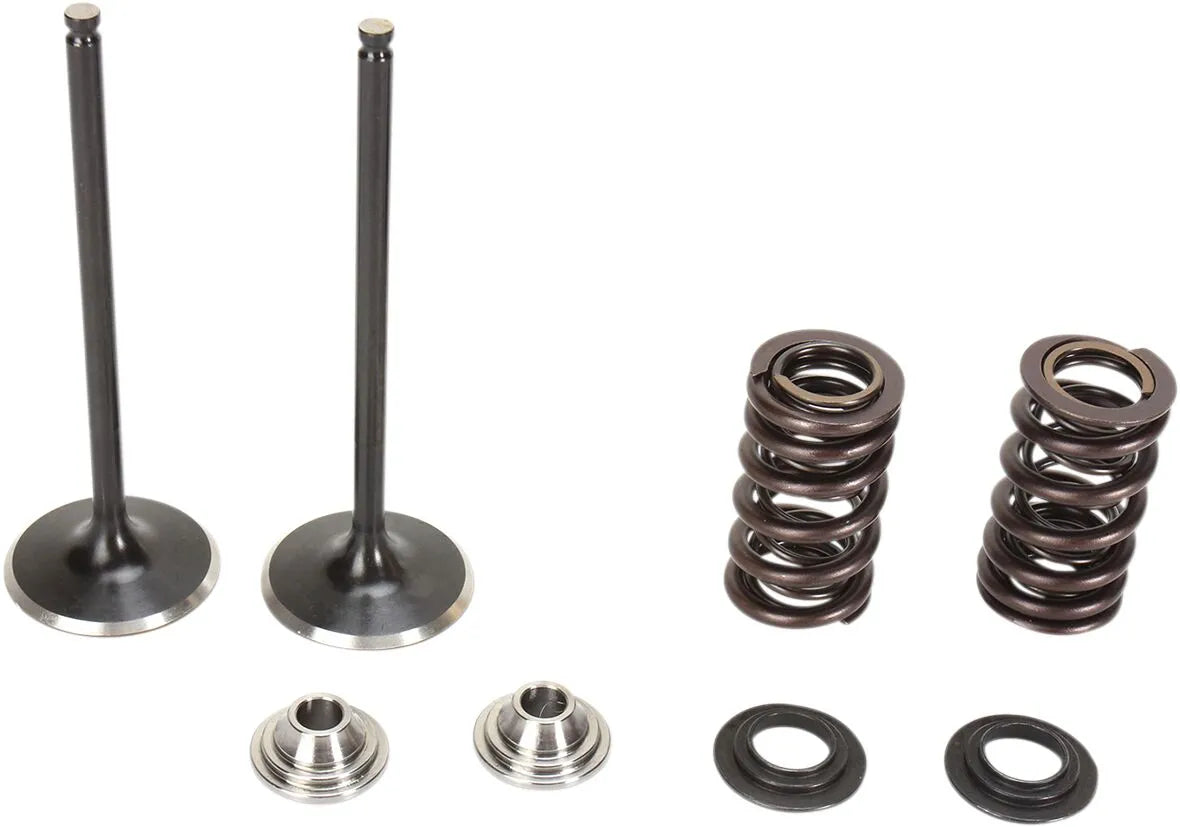

Kibblewhite Intake Valve and Spring Kit - 5.00mm - 30-31580
Produktinfo
- Varenummer
- 09262734
- Producentnummer
- 30-31580
- Placering
Upgrade your valvetrain with the Kibblewhite Intake Stainless Conversion Valve and Spring Kit. This kit provides a robust and reliable alternative to OEM titanium components, significantly extending the lifespan of your intake system.
Description
The Kibblewhite Intake Stainless Conversion Kit provides a complete solution for converting your cylinder head to utilize long-lasting Black Diamond stainless steel intake valves. By replacing the original titanium parts, this kit extends the life of the valvetrain and intake components by as much as four times. Each kit includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers, and hardened steel bases. Components are engineered using Finite Element Analysis (F.E.A.) software, along with specialized camshaft analysis and spring design software. Designed and engineered specifically for each application, this kit ensures optimal performance and reliability. Upgrade to stainless steel and experience the durability and performance benefits of Kibblewhite.
Features & highlights
- Extends valvetrain life up to 4x over OEM titanium parts.
- Includes forged one-piece Black Diamond stainless steel intake valves.
- Features wound chrome-silicon heat-treated wire valve springs for consistent performance.
- Ultra-light titanium retainers reduce valvetrain mass.
- Hardened steel bases provide a durable foundation.
- Engineered using advanced Finite Element Analysis (F.E.A.) software.
- Proudly made in the USA, ensuring top-quality craftsmanship.
Technical specifications
- Brand: Kibblewhite
- Product Name: Valve and Spring Kit
- Application: Intake
- Valve Material: Black Diamond™ Stainless
- Valve Head Diameter: 36.00 mm
- Valve Stem Diameter: 5.00 mm
- Valve Length: 3.095"
- Valve Tulip Angle: 20°
- Spring Lift: 0.440"
- Spring Seat Pressure: 40 lb
- Spring Open Pressure: 147 lb
- Collar Material: Titanium
- Valve Seat Height: 1.215"
- Type: Conversion
Important to know
This conversion kit includes only the necessary components to convert your head to stainless steel intake valves. No other parts are included.
- Brand
- KIBBLEWHITE
- Vendor part number
- 30-31580
- Product name
- Valve and Spring Kit
- Tulip angle
- 20°
- Stem diameter
- 5.00 mm
- Head diameter
- 36.00 mm
- Length
- 3.095"
- Valve seat height
- 1.215"
- Spring open pressure
- 147 lb
- Spring seat pressure
- 40 lb
- Spring lift
- 0.440"
- Collar material
- Titanium
- Application
- Intake
- Material
- Black Diamond™ Stainless
- Type
- Conversion
- Units
- Kit
