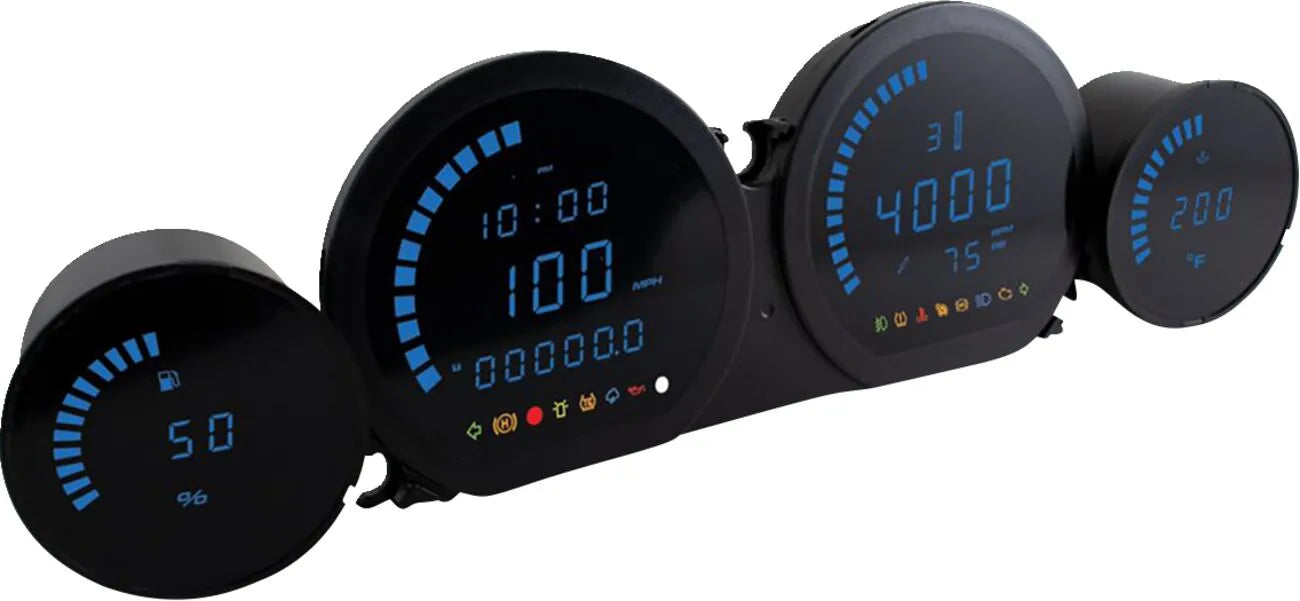

Koso HD-03L Gauge Kit - mph - BA064911

Upgrade your motorcycle's instrumentation with the Koso North America HD-03L LED Gauge Kit. This comprehensive kit provides a modern and informative display, enhancing your riding experience with real-time data and vital indicators.

Description

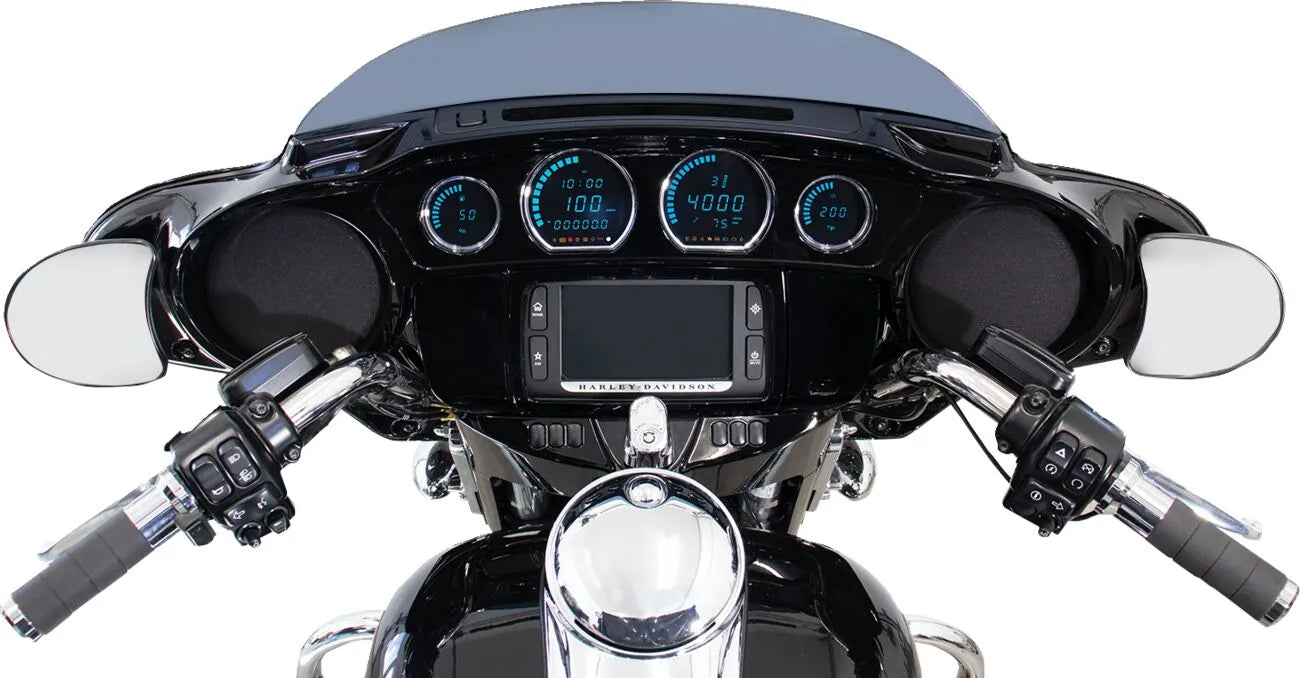

The Koso HD-03L is a plug-and-play LED gauge kit designed for easy installation, fitting directly onto the OEM dash and connectors. With adjustable digit brightness levels ranging from 1 (darkest) to 5 (brightest), the display is easily readable in any lighting conditions. This multi-function kit includes a speedometer, tachometer, odometer, voltmeter, gear indicator, trip meter, engine temperature gauge, oil temperature gauge (32° F - 248° F), and fuel level gauge. Stay informed with indicator lights for oil, engine warning, high beam, fog light, voltage, anti-theft, cruise control, ABS, and turn signals. The speedometer displays speeds from 0-199 MPH. For CVO models, ensure the run/stop switch is in the ON position to adjust display settings.

Features & highlights

• Plug-and-play installation for a seamless upgrade.
• Multi-function display provides comprehensive real-time data.
• Adjustable brightness ensures optimal visibility in all conditions.
• Monitors vital engine parameters, including temperature and voltage.
• Includes essential indicator lights for safety and awareness.
• Optional air pressure sensor available for air suspension models.

Technical specifications

• Brand: Koso North America
• Product Name: Gauge Kit
• Type: Multi-Function
• Face Color: Black
• Housing Color: Black
• Readout Color: Blue
• Speedometer: 0 - 199 MPH
• Odometer: 0 - 999,999 miles
• Tripmeter A/B: 0 - 9,999 miles
• Tachometer: 0 - 9,999 RPM
• Shift Light: 2,000 - 8,000 RPM
• Oil Temperature Meter: 32° F - 248° F
• Voltmeter: DC 8V - 18V
• Fuel Tank Volume: Off/1 - 9.9 US Gallons
• Depth: 2" (51 mm), 1-3/4" (44.45 mm)
• Length: 2-3/4" (70 mm), 10-5/8" (27 cm)
• Width: 3-3/4" (9.5 cm), 2-3/4" (6.9 cm)

Important to know

• Optional air pressure sensor for models equipped with air suspension is available separately.
• On CVO models, the run/stop switch must be in the ON position to change settings on the display.
