Koso Hd-05 Meter For Harley Davidson

Upgrade your Harley-Davidson® with the Koso North America HD-05 meter, a comprehensive digital gauge designed for models with attached tanks. This plug-and-play unit seamlessly integrates into your motorcycle's existing wiring harness and CANBUS system, providing real-time data and enhanced monitoring capabilities. Enjoy a customizable display with changeable background lighting and a clear gear indicator, ensuring you stay informed and in control on every ride.

Description

The Koso HD-05 digital meter delivers a wealth of information, including precise engine temperature readings, battery voltage, and average fuel efficiency. Monitor your motorcycle's vital parameters with ease, thanks to the integrated indicator system. The bright, easily readable display features both a speedometer (0-225 mph) and tachometer (0-8,000 RPM), allowing for quick and accurate assessment of performance. With its user-friendly interface and direct CANBUS interaction, installation is straightforward, and the benefits are immediately apparent. The Koso HD-05 is the perfect blend of form and function, enhancing both the aesthetics and performance monitoring of your Harley-Davidson.

Features & highlights

• Plug-and-play design for easy installation on Harley-Davidson® models.
• Integrated speedometer (0-225 mph) and tachometer (0-8,000 RPM) for comprehensive performance monitoring.

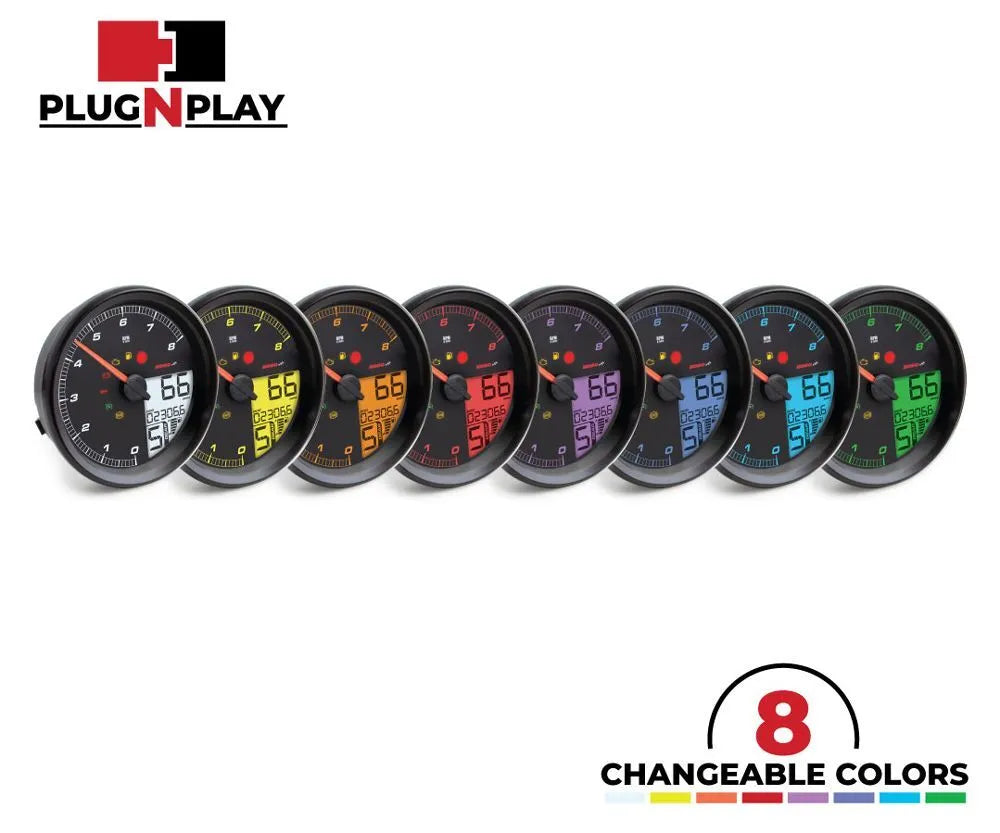

• Changeable background lighting and gear indicator for enhanced visibility and control.
• Real-time measurements of engine temperature, battery voltage, and average fuel efficiency.
• Fuel level monitoring with 6 levels and a fuel tank volume setting up to 9.9 US gallons (approx. 37 liters).
• Odometer and tripmeter functions to track mileage.
• Direct interaction with the motorcycle's CANBUS system for accurate data.

Technical specifications

• Brand: Koso North America
• Product Name: Gauge
• Housing Color: Black
• Speedometer Calibration: 0 kph - 360 kph

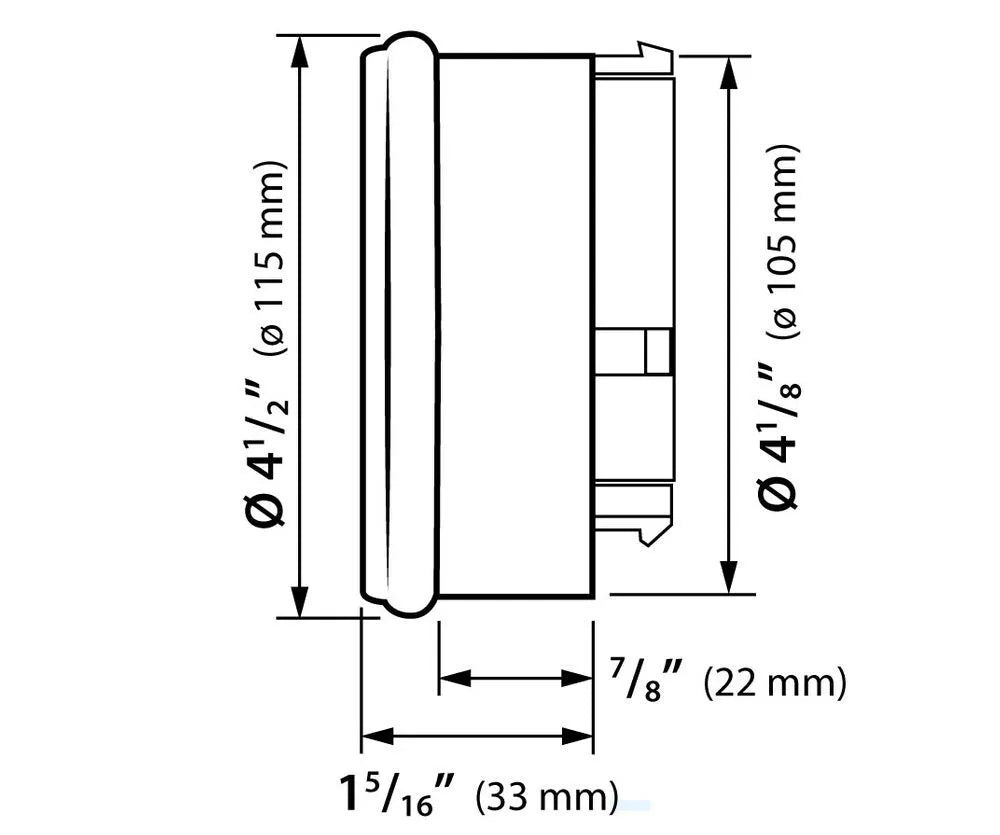

• Depth: 1.3125" (33 mm)

Important to know

This unit is designed as a direct replacement for specific Harley-Davidson® models with attached tanks and a 4.5" (11.43cm) gauge opening. Verify compatibility before purchase.
