Koso HD-05 Speedometer/Tachometer - mph - Black - BA072010

Upgrade your Harley-Davidson® with the Koso North America HD-05 meter, a comprehensive all-in-one instrument designed for models with attached tanks. This PLUG&PLAY unit seamlessly integrates with your bike's CANBUS system, providing vital information at a glance. Enhance your riding experience with accurate readings and customizable features.

Description

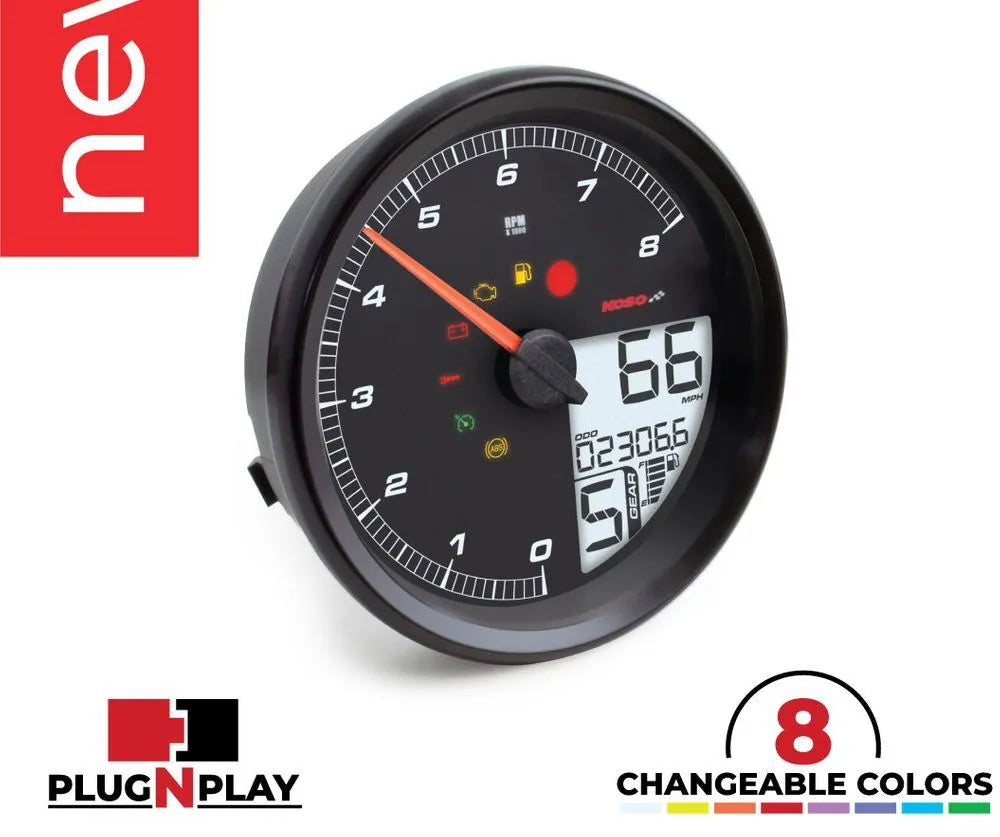

The Koso HD-05 meter combines a speedometer and tachometer into a single, easy-to-read 4.5" (11.43cm) display. Monitor critical parameters such as engine temperature, battery voltage, and average fuel efficiency. A built-in gear indicator adds another layer of convenience, while the customizable background lighting lets you personalize your dashboard. This meter directly interacts with your motorcycle's CANBUS system via the existing wiring harness, guaranteeing seamless operation and precise data. The fuel meter displays six levels (1 level = 16.6%), and the fuel tank volume can be configured for up to 9.9 US gallons (approximately 37 liters).

Features & highlights

• All-in-one speedometer and tachometer for Harley-Davidson® models.
• PLUG&PLAY design for easy installation and seamless CANBUS integration.
• Displays essential data: engine temperature, battery voltage, and fuel efficiency.

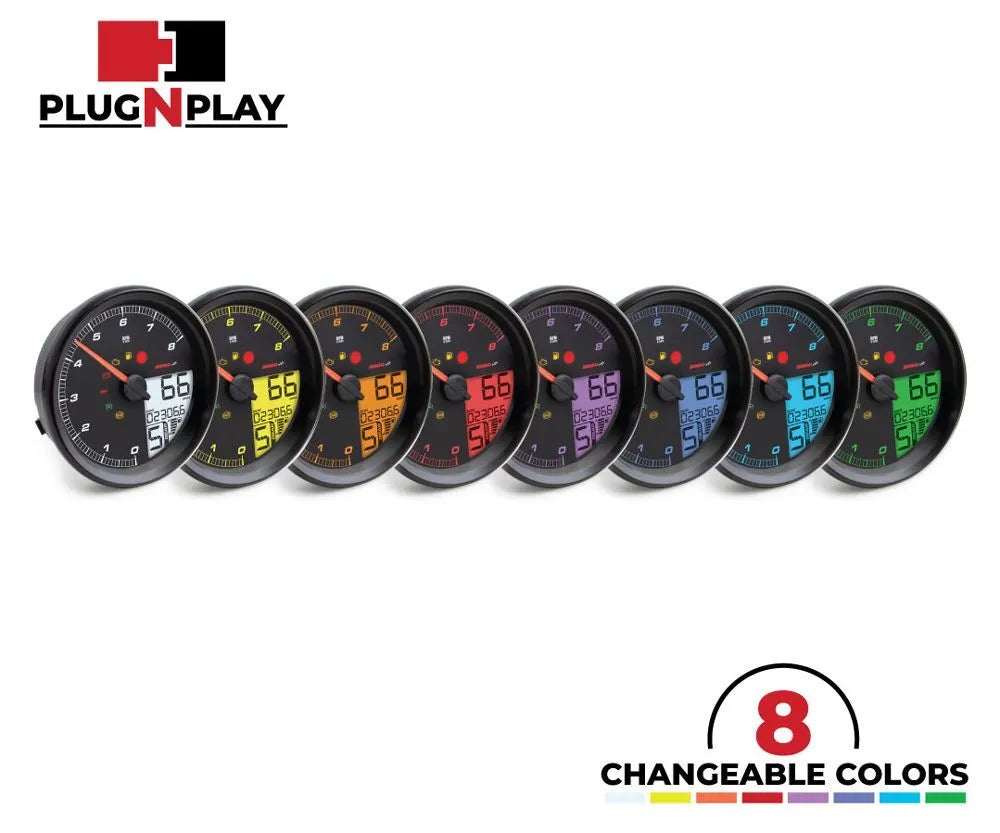

• Customizable background lighting for personalized aesthetics.
• Built-in gear indicator for added convenience.
• Accurate fuel level monitoring with a detailed six-level display.

Technical specifications

• Brand: Koso North America
• Part Number: 22120892
• Product Name: Gauge
• Speedometer: 0 - 225 mph (0 kph - 360 kph)
• Tachometer: 0 - 8,000 RPM
• Odometer: 0 - 999,999 miles
• Tripmeter: 0 - 9,999 miles
• Voltmeter: DC 8V - 18V
• Fuel Meter: 6 levels (1 level = 16.6%)
• Fuel Tank Volume: Off/1 - 9.9 US Gallons (approx. 37 liters)
• Depth: 1.3125" (33 mm)
• Housing Color: Black

Important to know

This is a direct replacement gauge for Harley-Davidson® models with attached tanks. Ensure compatibility with your specific motorcycle model before installation.
