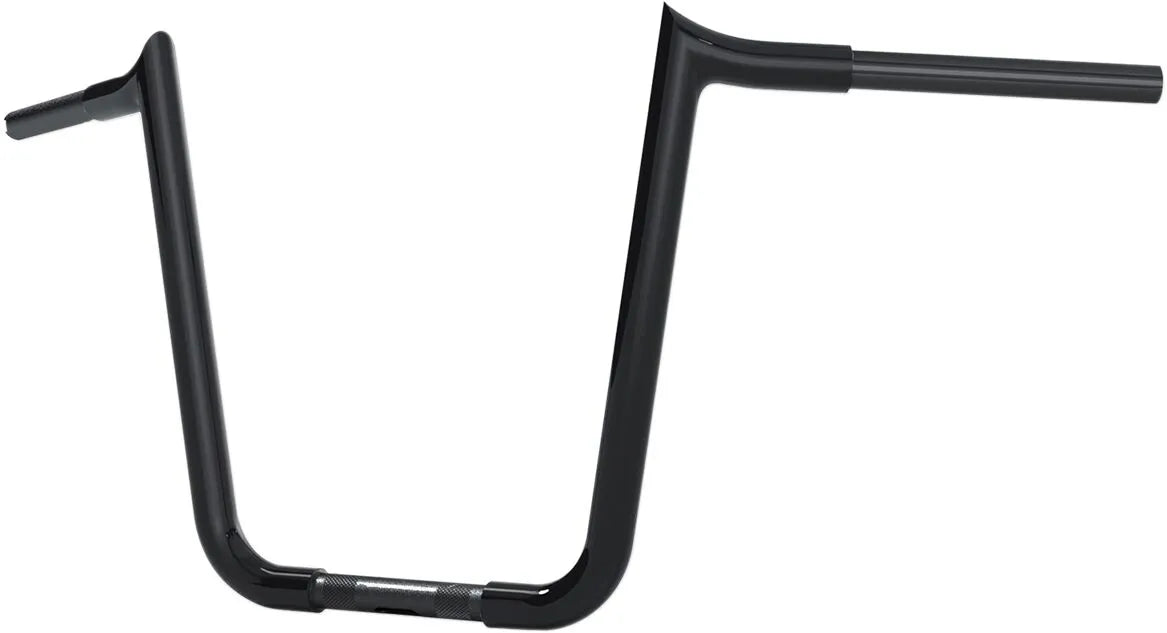

Magnum Shielding 1-1/4" Viking Handlebar

Upgrade your motorcycle with the Magnum Shielding 1-1/4" Viking Handlebar. This handlebar combines exceptional design with ease of installation, ensuring a seamless upgrade for your ride. Experience enhanced control and a striking aesthetic with this top-quality handlebar.

Description

The patented Viking Handlebar features an innovative internal design that simplifies the installation of complete wiring harnesses. Without compromising the handlebar's clean, peaked look, this design provides ample space for the entire wiring harness, including factory vinyl covering, terminal connections, and shrink sleeves, to pass through without chafing. Magnum Shielding utilizes a unique flaring process to create a burr-free internal radius, offering additional clearance within the handlebar's peak. To further simplify wiring, these handlebars come preloaded with E-Z pull-thru plastic woven sleeving – simply insert the wiring harness into the sleeving and pull through. Manufactured with high-quality construction, including smooth, round CNC mandrel bends, machined control mounts, burr-free internal wiring holes, electronic throttle control slots, and a high-luster gloss black finish, the Magnum Shielding Viking Handlebar provides an unsurpassed appearance and superior performance. These ape hanger handlebars are notched for throttle-by-wire.

Features & highlights

• Simplified wiring harness installation with patented internal design.
• Burr-free internal radius provides additional clearance.
• Preloaded with E-Z pull-thru plastic woven sleeving for easy wiring.
• High-quality construction with CNC mandrel bends and machined control mounts.
• Features electronic throttle control slots.
• Eye-catching gloss black finish.
• Notched for throttle-by-wire.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Handlebar
• Type/Bend: Viking, Ape Hanger
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Finish: Gloss
• Base Color: Black
• Material: Steel
• Width: 36-1/4" (92 cm)
• Height: 14" (35.5 cm)
• Center Width: 7-3/4" (19,5 cm)
• Clamping Width: 3-1/2" (88,9 mm)
• End Rise: 13-1/2" (34,5 cm)
• Pullback/Sweep: 6-1/2" (16,5 cm)
• Controls Diameter: 1" (25.4 mm)
• Features: For Hydraulic Clutch, Notched for Throttle-By-Wire, Pre-Drilled, Knurled Center

Important to know

Not for use with stock risers or handlebar clamp/gauge mount clamp on 883C and 1200C models. Viking handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version.
