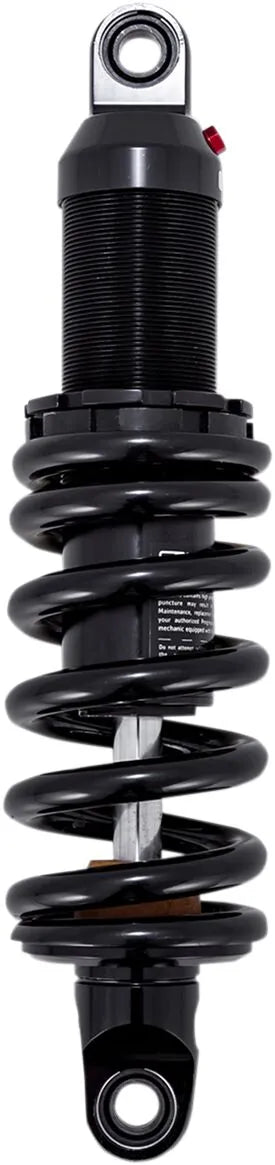

Progressive Suspension 465 Series Heavy Duty Shock - 12.6" - 465-1190B

Upgrade your Softail's suspension with the Progressive Suspension 465 Series Shock, engineered for superior performance and ride quality. This high-performance shock absorber offers a smooth and controlled ride, enhancing handling and comfort.

Description

The Progressive Suspension 465 Series Shock utilizes a high-pressure gas monotube design to deliver exceptional damping and consistent performance. The five-position rebound adjustment allows you to fine-tune the suspension to match your riding style and road conditions. A threaded shock body provides a wide range of adjustment for preload and sag, ensuring optimal setup for various rider weights and loads. Constructed with a hard anodized aluminum body and components, this shock offers excellent durability and corrosion resistance. The 46 mm bore and deflective disc piston provide precise and consistent damping, while the 16 mm hard chrome shaft rides on custom viton seals for low friction and leak-free reliability. Each shock is custom-tuned with specific damping and spring rates for the Softail fitment. This model also has a height adjustment with standard and lowering capabilities of 1.00". Designed for heavy-duty applications, these shocks are recommended for bikes operating near the manufacturer’s maximum load rating over 50% of the time.

Features & highlights

• Experience ultimate performance with the high-pressure gas monotube design.
• Customize your ride with five-position rebound adjustment.
• Fine-tune preload and sag with the threaded shock body.
• Enjoy long-lasting durability with the hard anodized aluminum body and components.
• Benefit from precise damping thanks to the 46 mm bore and deflective disc piston.
• Ensure leak-free reliability with the 16 mm hard chrome shaft and custom viton seals.
• Lower ride height with 1.00" lowering capability.

Technical specifications

• Brand: Progressive Suspension
• Product Name: Shock Absorber
• Vendor Part Number: 465-1190B
• Mounting Position: Rear
• Type: Coilover Monotube
• Damping Method: Gas Charged
• Bore Size: 46.00 mm (1.81")
• Extended Length: 320.04 mm (12.60")
• Height Adjustment: Standard, Lowers 25.40 mm (1.00")
• Adjustment Type: Threaded Preload Adjustable
• Spring Type: Single Progressive Rate
• Reservoir Location: Internal
• Material: Aluminum
• Color/Finish: Black, Anodized
• Duty: Heavy Duty

Important to know

Before purchasing or installing shocks that differ from the OEM length, verify that your wheel travel can be altered without causing clearance issues such as swingarm/axle to exhaust contact, chain/belt guard, or tire contact. Heavy-duty applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.
