Renthal Twinring Rear Sprocket - 520 Chain

The Renthal Twinring™ Rear Sprocket offers the ultimate combination of durability and lightweight performance for your motorcycle. Engineered for demanding riders, this sprocket provides exceptional longevity and reduces rotating mass for improved handling and acceleration. Upgrade to Renthal and experience the difference.

Description

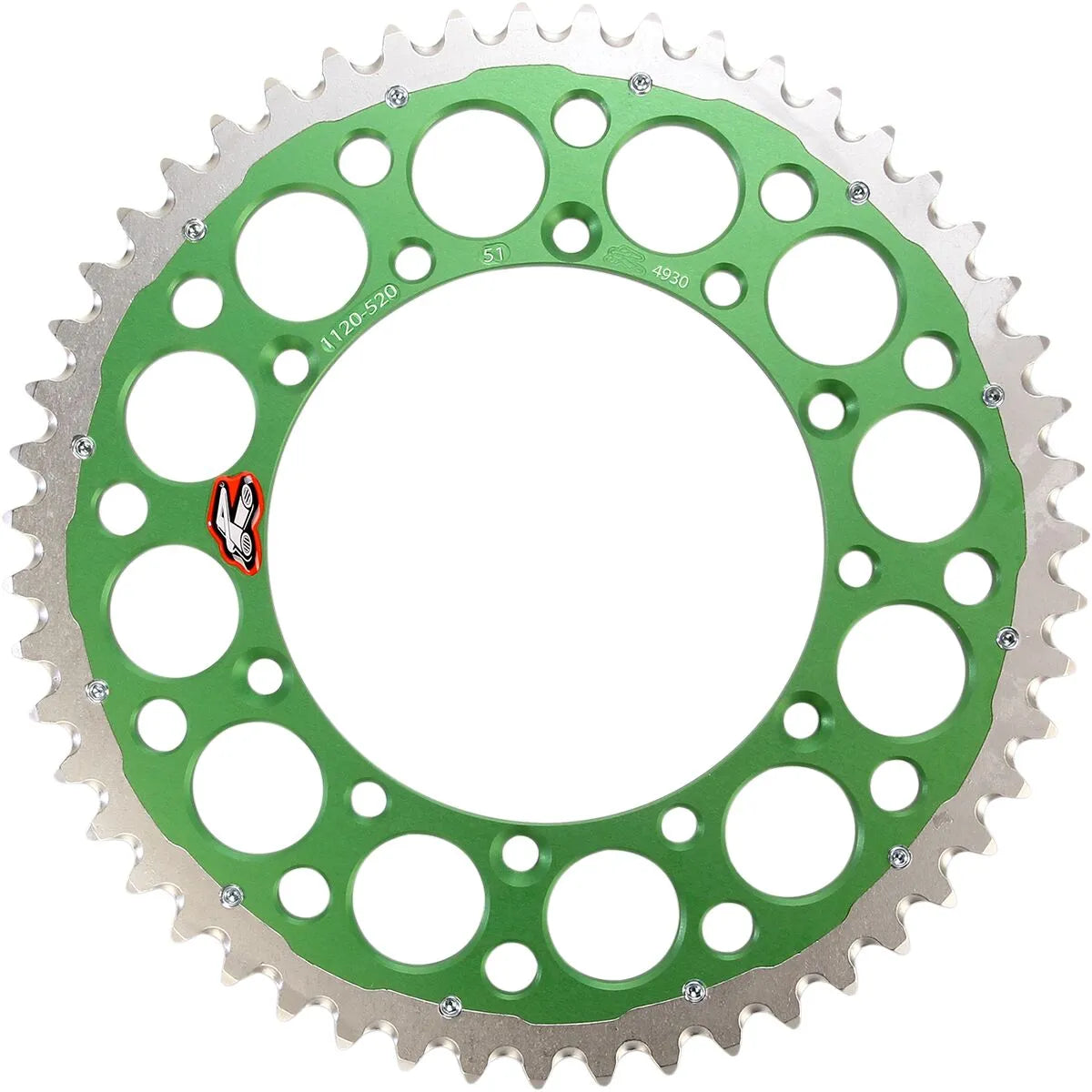

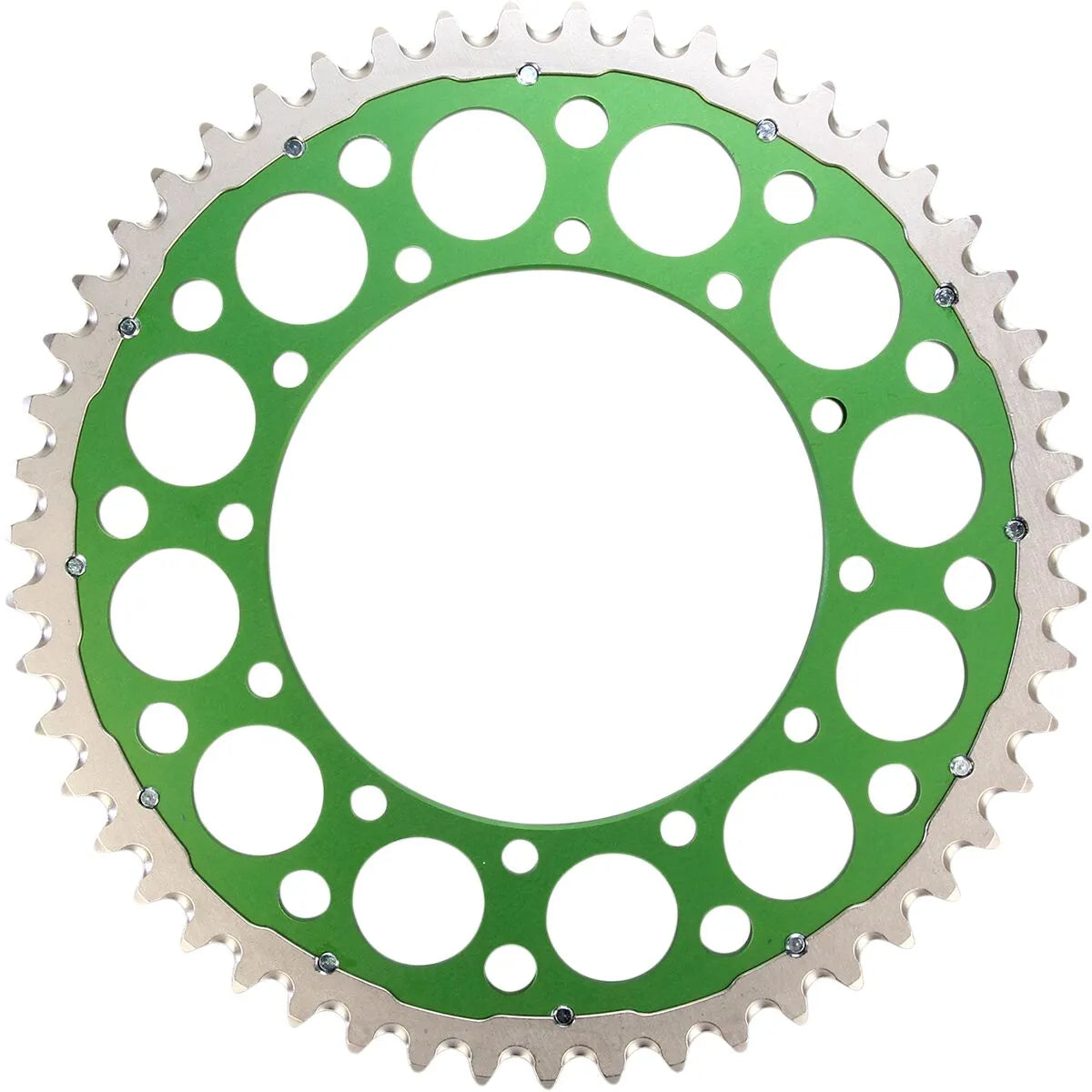

Renthal's Twinring™ Rear Sprocket is designed with a unique two-piece construction. The inner ring is machined from Renthal's high-strength Ultralight™ 7075-T6 aluminum, the same material used in their standard sprockets, ensuring minimal weight and maximum power transfer. The outer ring is constructed from durable, electro-less nickel-coated steel, providing exceptional wear resistance and extending the sprocket's lifespan. The outer ring is expanded at 200°C and fitted over the inner, creating an interference fit that, combined with a wave pattern, forms a permanent bond. Flat socket head screws add further strength, especially during side impacts, while also preventing contact with the chain guide. Self-cleaning mud grooves between each tooth prevent dirt buildup, reducing chainwheel wear and minimizing weight. Expect up to three times the lifespan of a standard all-aluminum sprocket, with a weight significantly less than an all-steel equivalent. This 520 chain sprocket with 51 teeth provides optimal power transfer.

Features & highlights

• Inner ring crafted from Ultralight™ 7075-T6 aluminum for reduced weight and optimal strength.
• Electro-less nickel-coated steel outer ring ensures maximum durability and extended lifespan.
• Interference fit and wave pattern create a permanent bond between the inner and outer rings.
• Flat socket head screws enhance strength and prevent chain guide interference.
• Self-cleaning mud grooves minimize dirt buildup, reducing wear and weight.
• Significantly lighter than all-steel sprockets, improving handling and performance.
• Offers up to 3x the lifespan of standard aluminum sprockets.

Technical specifications

• Brand: Renthal
• Product Name: Sprocket
• Mounting Position: Rear
• Chain Size: 520
• Tooth Count: 51
• Material: 7075-T6 Aluminum & Nickel-coated Steel
• Type: Drive
• Color/Finish: Green

Important to know

No specific requirements or limitations noted.
