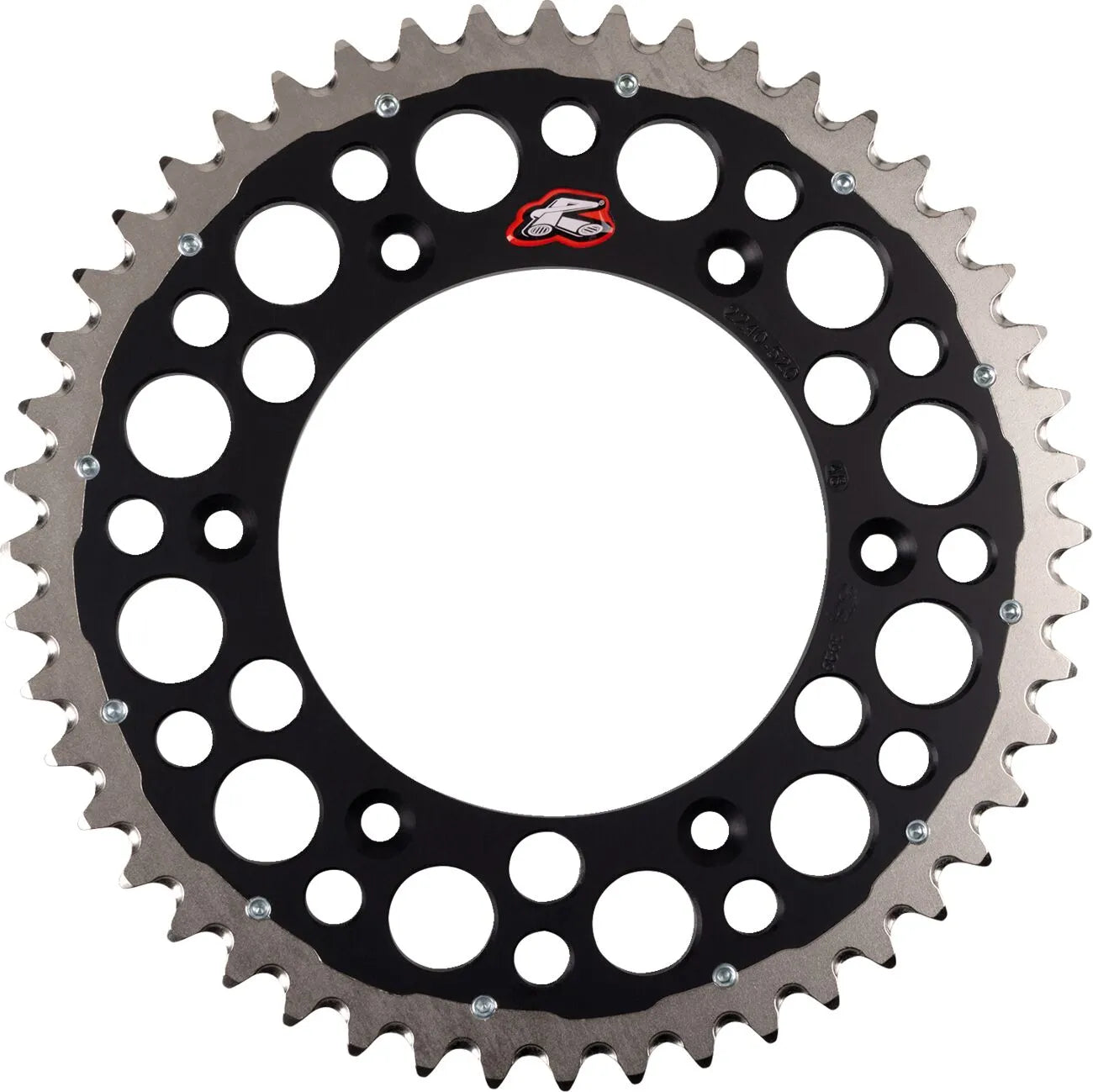

Renthal Twinring Rear Sprocket - 48T - 520 - Black - 2240-520-48GPBK

The Renthal Twinring™ rear sprocket offers the best of both worlds: lightweight performance and exceptional durability. Engineered for demanding riders, this sprocket is designed to withstand the rigors of off-road and racing conditions, providing superior longevity compared to traditional aluminum sprockets.

Description

The Renthal Twinring™ rear sprocket utilizes a unique two-piece design. The inner ring is manufactured from Renthal's high-strength Ultralight™ 7075 T-6 aluminum, the same material used in their standard sprockets, ensuring minimal weight and maximum power transfer. The outer ring is constructed from electro-less nickel-coated steel, providing ultimate durability and resistance to wear. The outer ring is carefully designed with minimal material to maintain a light weight. The two rings are permanently bonded using an interference fit process where the outer ring is expanded at 200°C before being fitted over the inner ring, with a wave pattern ensuring a secure bond for the life of the sprocket. Flat socket head screws add further strength, particularly during side impacts, and prevent contact with the chain guide. Self-cleaning mud grooves between each tooth prevent dirt build-up, reducing chainwheel wear and maintaining optimal performance. Expect approximately three times the lifespan of a standard all-aluminum sprocket, with a weight significantly less than an all-steel equivalent.

Features & highlights

• Inner ring crafted from high-strength Ultralight™ 7075 T-6 aluminum for weight savings.
• Electro-less nickel-coated steel outer ring maximizes durability and wear resistance.
• Interference fit with wave pattern creates a permanent bond between the inner and outer rings.
• Flat socket head screws enhance strength and prevent chain guide interference.
• Self-cleaning mud grooves minimize dirt build-up and chain wear.
• Offers 3x the lifespan of aluminum sprockets, lighter than steel.
• Designed for optimal power transfer and long-lasting performance.

Technical specifications

• Brand: Renthal
• Product Name: Sprocket
• Mounting Position: Rear
• Chain Size: 520
• Tooth Count: 48
• Material: 7075-T6 Aluminum & Nickel-Coated Steel
• Type: Drive
• Color/Finish: Black

Important to know

No specific requirements or limitations noted.
