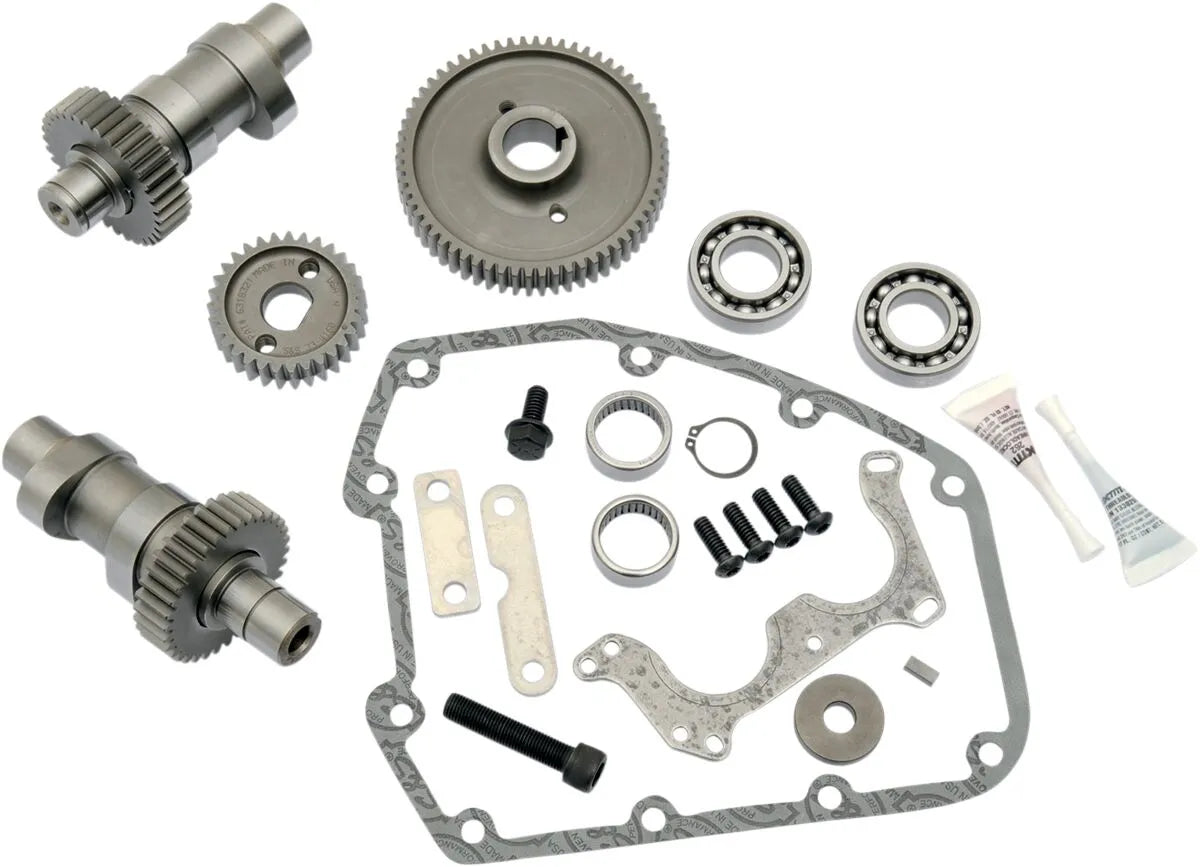

S&S Cycle 509G Camshaft Kit - 330-0017

Upgrade your Harley-Davidson's performance with the S&S Cycle 509G Gear Drive Camshaft Kit. This kit is designed to provide increased valve timing accuracy and improved engine performance, making it an excellent choice for enthusiasts and professionals alike. Experience enhanced power and responsiveness across a broad RPM range.

Description

The S&S Cycle 509G Gear Drive Camshaft Kit is engineered to boost the performance of 88 CID engines with stock compression ratios. By replacing the stock chain drive with a gear drive, the kit significantly increases valve timing accuracy by eliminating timing chain lash. The reversed rear cam rotation provides additional operating clearance between cam lobes, allowing for higher cam lifts. Designed for strong performance from 1000-4500 rpm, this kit provides a noticeable improvement in power and throttle response. With 180 psi cranking compression (12.41 Bar in EU), compression releases are not required. These cams can also be bolted into 96"-106" '06 engines with stock valve springs, due to the lower lift.

Features & highlights

• Enhances valve timing accuracy by eliminating timing chain lash.
• Increases operating clearance between cam lobes for higher cam lifts.
• Delivers strong performance from 1000-4500 rpm.
• Allows bolt-in installation for 96"-106" '06 engines with stock valve springs.
• Provides 180 psi cranking compression (12.41 Bar in EU), eliminating the need for compression releases.
• Made in the USA.
• Includes all necessary components for installation.

Technical specifications

• Brand: S&S Cycle
• Product Name: Cam Kit
• Type: Gear Drive
• Application: Exhaust, Intake
• Grind: 509 Series
• Intake Open: 18°
• Intake Close: 18°
• Intake Duration: 216°
• Intake Lift: 0.509"
• Intake Lift at TDC: 0.174"
• Intake Lobe Centerline: 90°
• Exhaust Open: 46°
• Exhaust Close: 11°
• Exhaust Duration: 237°
• Exhaust Lift: 0.509"
• Exhaust Lift at TDC: 0.140"
• Exhaust Lobe Centerline: 107.5°

Important to know

• Requires material removal from the inner surface of the stock gear cover.
• S&S recommends using an adjustable pushrod/cover kit.
• Cam bearings and gaskets must be replaced during installation.
• A hydraulic press and other professional-level tools are required for installation.
• Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance.
• Due to the inherent characteristics of gear drives, you may experience more valve train noise.
