S&S Cycle Twin Cam HP103 Easy Start Camshaft Kit - 330-0346

Upgrade your Harley-Davidson 103" engine with the S&S Cycle HP103 Easy Start Camshaft Kit. This kit delivers enhanced performance and an easier starting experience. Designed for enthusiasts and professionals, this camshaft kit provides increased power in the high RPM range, from 3000 to 6000 RPM, without sacrificing reliability.

Description

The S&S Cycle HP103 Easy Start Camshaft Kit is engineered to improve the performance of your 103" engine. This kit features a unique compression release mechanism that reduces cranking compression for easier starting. Once the engine is running and RPM increases, the compression release lobe retracts, allowing the engine to operate at full compression without any performance loss. Designed as bolt-in cams, this kit works perfectly with stock, unported heads as well as S&S CNC ported heads. It is optimized for engines with stock 9.7:1 compression ratio up to 10.5:1 compression ratio, delivering significant power gains in the 3000-6000 RPM range. Installation requires checking coil bind and valve-to-piston clearance to ensure optimal operation. This kit is proudly made in the USA with high-quality materials for long-lasting performance.

Features & highlights

• Easy Start: Reduces cranking compression for effortless starting.
• High RPM Power: Delivers increased power in the 3000-6000 RPM range.
• Optimized Design: Bolt-in cams designed for 103" engines with 9.7:1 to 10.5:1 compression ratios.
• Versatile Compatibility: Works with both stock and S&S CNC ported heads.

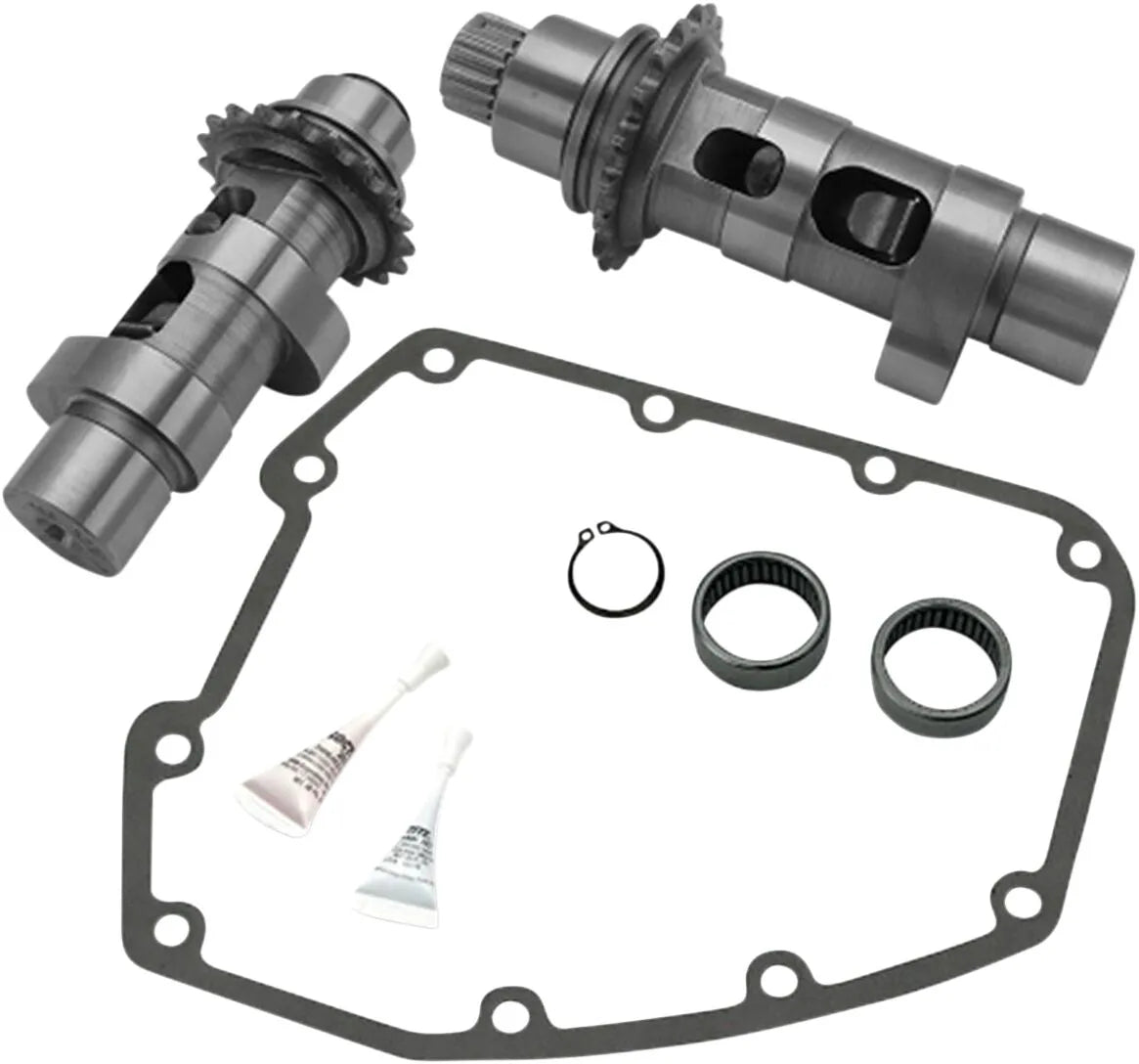

• Complete Kit: Includes all necessary components for installation.
• Made in the USA: Ensures top-notch quality and reliability.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Grind: HP103
• Type: Chain
• Application: Exhaust, Intake
• Intake Open: 20°
• Intake Close: 49°
• Intake Duration: 249°
• Intake Lift: 0.575"
• Intake Lift at TDC: 0.199"
• Intake Lobe Centerline: 104.5°
• Exhaust Open: 45°
• Exhaust Close: 26°
• Exhaust Duration: 251°
• Exhaust Lift: 0.575"
• Exhaust Lift at TDC: 0.206"
• Exhaust Lobe Centerline: 99.5°

Important to know

• Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
• Not for models with OEM compression releases.
