Tecmate Optimate Battery Charge Status Lead

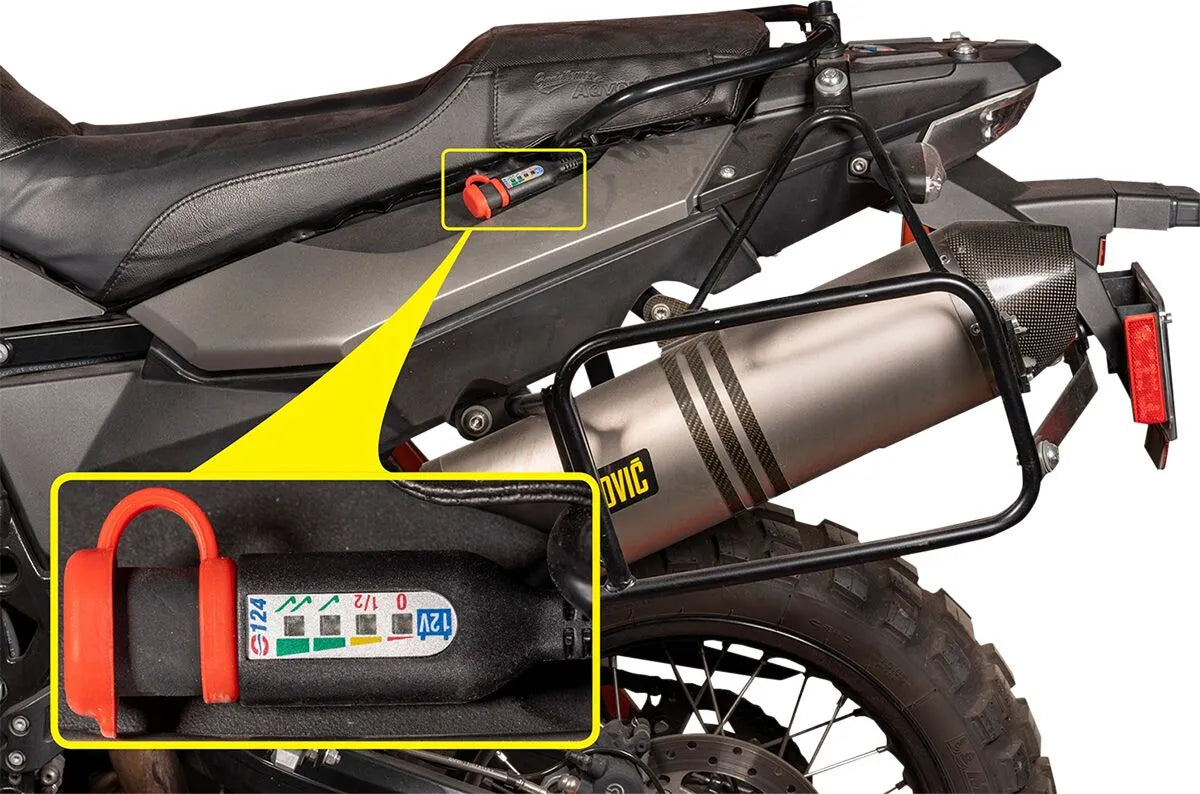

The Tecmate OptiMate Permanent Power Lead provides a convenient and reliable way to monitor the charge status of your 12V lead-acid battery. This lead is perfect for motorcycles, ATVs, and other powersport vehicles, offering real-time battery health information at a glance.

Description

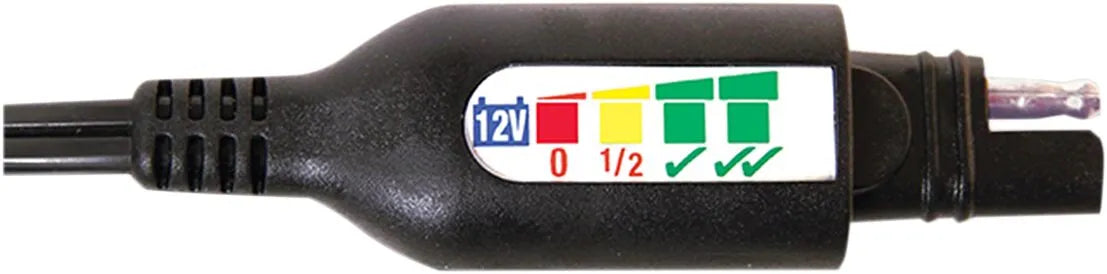

This intelligent power lead features two automatic modes: a battery state of charge monitor and a charging system test. The battery state of charge monitor uses a single LED flashing to indicate the battery's overall condition, while the charging system test employs an arrow mode to verify that your vehicle's charging system is functioning correctly. Four LEDs cover the voltage range from 'full to empty,' accommodating all 12V batteries, including higher voltage AGM batteries commonly used in powersport applications. The fourth LED illuminates at 12.7V, providing a clear indication of a healthy battery. With a long-term draw of less than 0.2mA, the battery charge level is displayed with an LED that blinks every 5 seconds. The vehicle charge system activates the LED arrow mode when the charge voltage reaches a minimum of 13.5V (green LED) or an ideal range of 14V+ (double green LED). The cable is 610mm (24") long.

Features & highlights

• Monitor your 12V battery's charge and charging system at a glance.
• Features two automatic modes: battery state of charge and charging system test.
• Four LEDs indicate voltage range from 'full to empty', compatible with AGM batteries.
• Low power consumption: Long-term draw of less than 0.2mA.

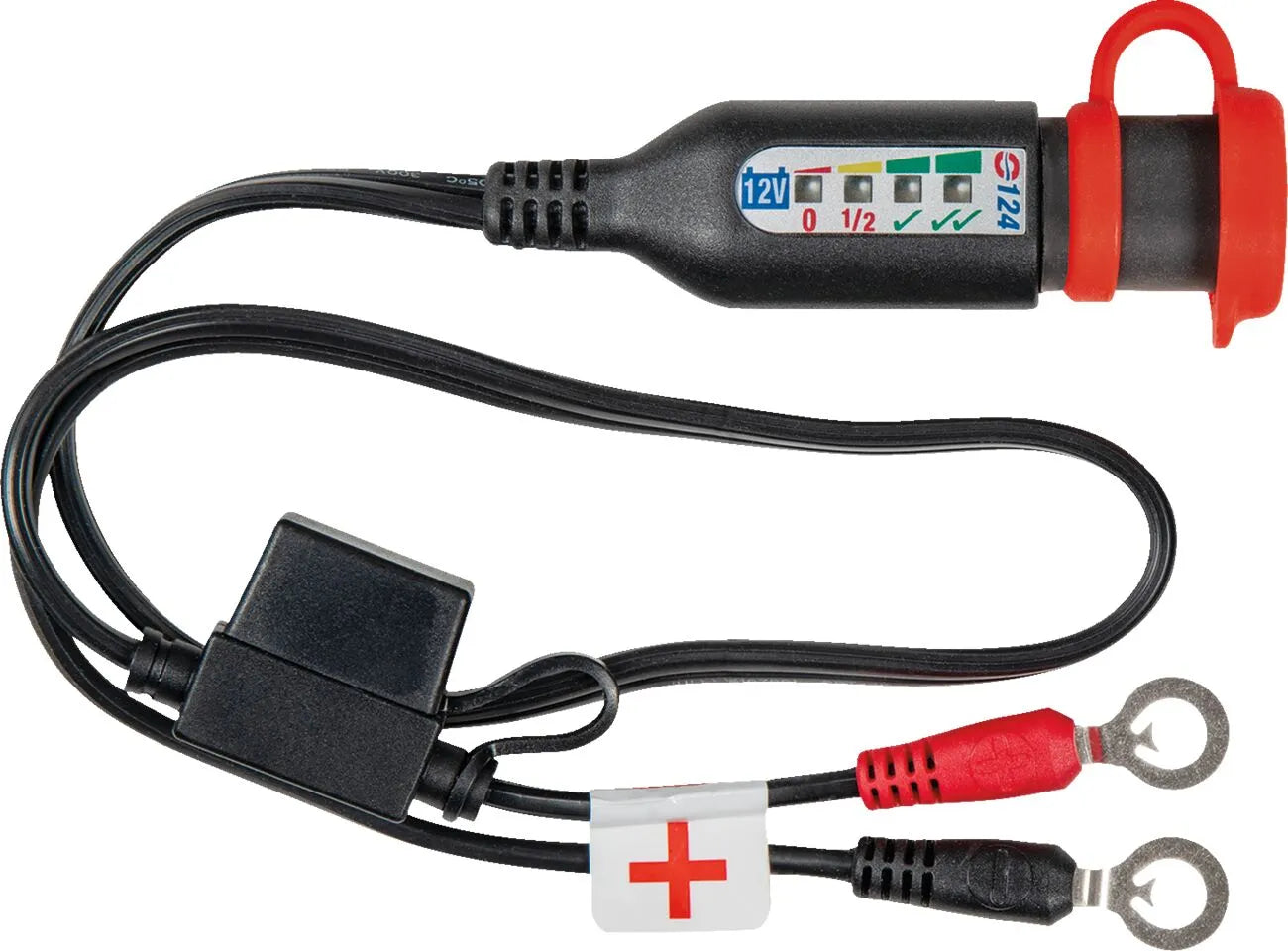

• Easy to install with fused terminal eyelets.
• SAE connection allows for easy connection to OptiMate chargers and accessories.

Technical specifications

• Brand: Tecmate
• Part Number: O124
• Cable Length: 610 mm (24")
• Color/Finish: Black
• Power Connection Type: SAE Plug, Fused, 1/4" Terminal Eyelet
• Type: Battery Level Indicator
• Voltage: 12V

Important to know

This is a permanent power lead for monitoring purposes. A compatible battery charger is required to charge the battery (sold separately).
