Vertex Top End Piston Kit - 77mm Bore - 250cc - Size C - VTKTC23942C

Upgrade your engine's performance with the Vertex Forged High Compression Piston Kit. This top-end kit is engineered to deliver increased power and torque, enhancing your riding experience. Manufactured with precision and durability in mind, Vertex provides enthusiasts and professionals with high-quality engine components.

Description

The Vertex Forged High Compression Piston Kit is designed to boost your engine's output across the entire RPM range. Featuring a forged piston crafted with Vertex technology, this kit ensures superior strength and reliability. The high compression design maximizes combustion efficiency, resulting in noticeable gains in both horsepower and torque. Each piston undergoes a T-5 heat treatment, which hardens and tempers the material for extreme durability. The piston skirt is coated with a Molybdenum Disulphide coating, promoting faster break-in and extending piston life. This 250cc piston kit is ideal for riders seeking improved throttle response and overall engine performance.

Features & highlights

• Forged high compression piston enhances power and torque.
• T-5 heat treatment provides exceptional strength and durability.
• Molybdenum Disulphide coated skirt reduces friction and wear for extended life.
• Improved throttle response and overall engine performance.
• Complete top end kit for easy installation.
• Designed for 4-stroke 250cc engines.

Technical specifications

• Brand: VERTEX
• Product Name: Piston Kit
• Engine Type: 4-Stroke
• Displacement: 250 cc
• Piston Material: Forged Aluminum Alloy
• Bore Size: 77.00 mm
• Piston Diameter: 76.97 mm
• Piston Size: Standard Size C
• Compression Ratio: 14.2:1
• Ring Material: Nitride Coated, Steel
• Skirt Coating: Moly Coated
• Type: Top End

Important to know

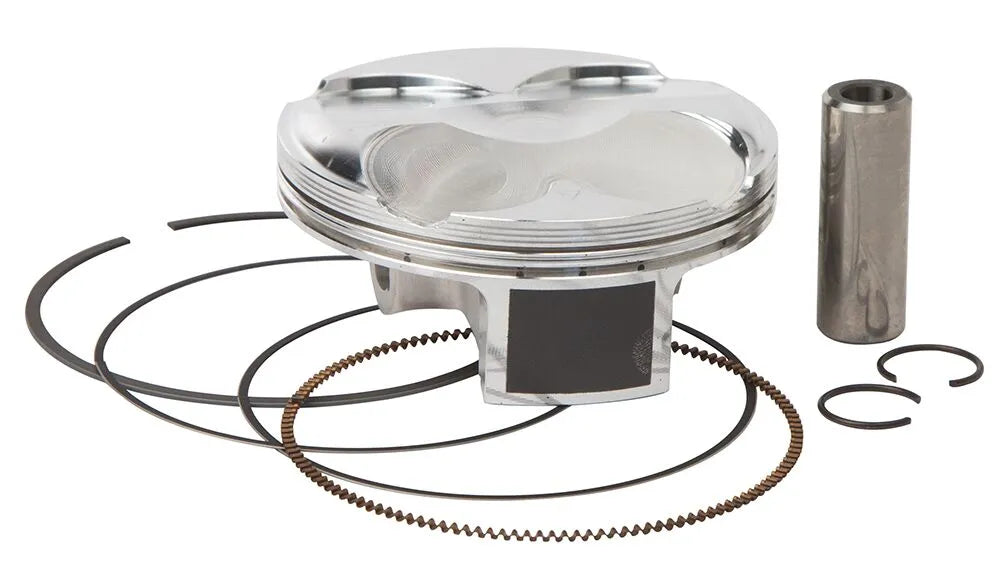

This top end piston kit includes the piston, rings, wrist pin, circlips, and top end gaskets. Replacement two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
