Vertex Forged Replica Piston Kit - 77mm Bore - 250cc - Size B - 24109B

Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. This kit delivers exceptional durability and improved engine performance. The Vertex piston kit ensures a precise fit and optimal function for your 250cc 4-stroke engine.

Description

The Vertex Forged Replica Piston Kit offers a cost-effective solution for engine rebuilds without sacrificing quality. Forged from high-strength 2618 aluminum alloy, this piston offers superior strength and durability compared to cast pistons. The piston undergoes a T-5 heat treatment, hardening and tempering cycle to further enhance its structural integrity. A Molybdenum Disulphite coating on the piston skirt reduces friction, promoting faster break-in and extending piston life. This kit includes everything needed for a complete piston replacement, including the piston, rings, wrist pin, and circlips. Designed as an OE replacement, it guarantees compatibility and straightforward installation. Suitable for 250cc 4-stroke engines with a 77.00 mm bore and a compression ratio of 13.5:1.

Features & highlights

• Forged from high-strength 2618 aluminum alloy for superior durability.
• T-5 heat treatment ensures optimal hardness and wear resistance.
• Molybdenum Disulphite coated skirt reduces friction and extends lifespan.
• Designed as a direct OE replacement for easy installation.

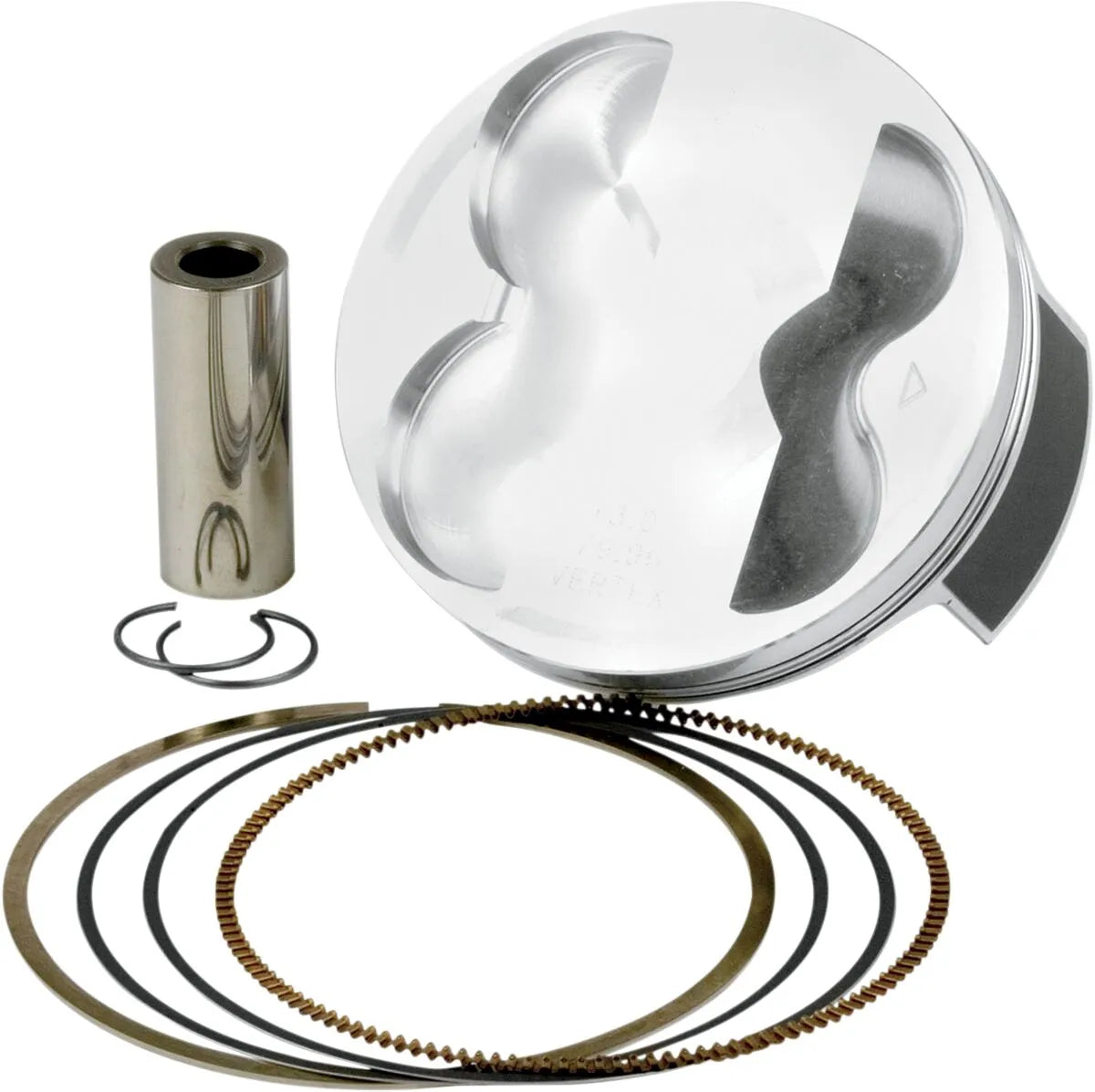

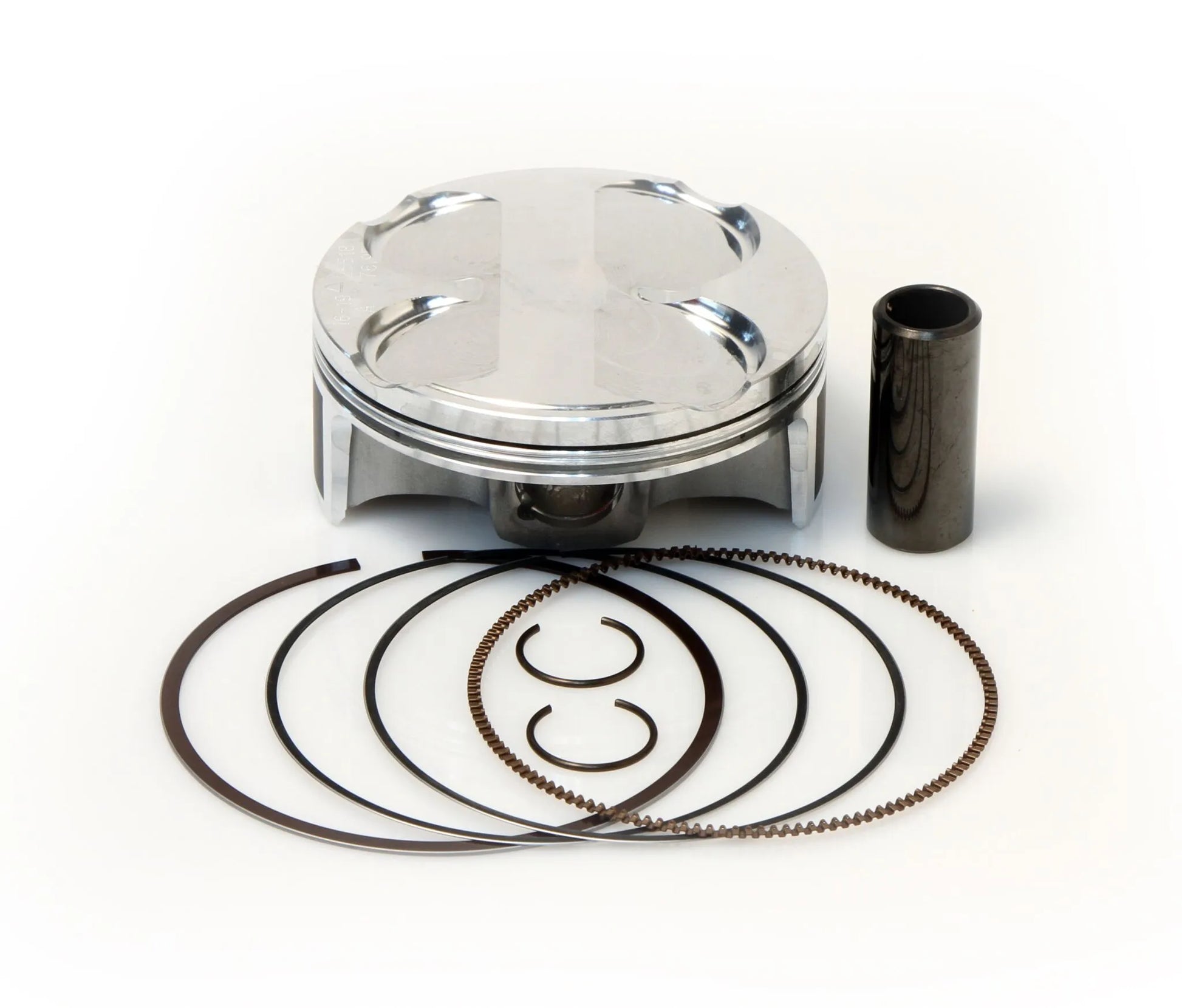

• Includes piston, rings, wrist pin, and circlips for a complete rebuild.
• Optimized for 250cc 4-stroke engines.
• Nitride coated steel rings provide excellent sealing and wear resistance.

Technical specifications

• Brand: Vertex
• Piston Material: Forged Aluminum Alloy
• Displacement: 250 cc
• Engine Type: 4-Stroke
• Bore Size: 77.00 mm
• Piston Diameter: 76.96 mm
• Piston Size: Standard Size B
• Compression Ratio: 13.5:1
• Ring Material: Nitride Coated Steel
• Skirt Coating: Moly Coated

Important to know

• Ensure proper piston-to-cylinder clearance during installation.
• Always consult your engine's service manual for specific torque specifications.
