Vertex Top End Piston Kit 125cc

The Vertex Top End Piston Kit (Cast Replica) offers a reliable and cost-effective solution for rebuilding your 2-stroke engine. This kit provides all the necessary components to restore your top end to like-new condition, ensuring optimal performance and longevity. Ideal for enthusiasts and professional mechanics alike, the Vertex piston kit delivers exceptional value and quality.

Description

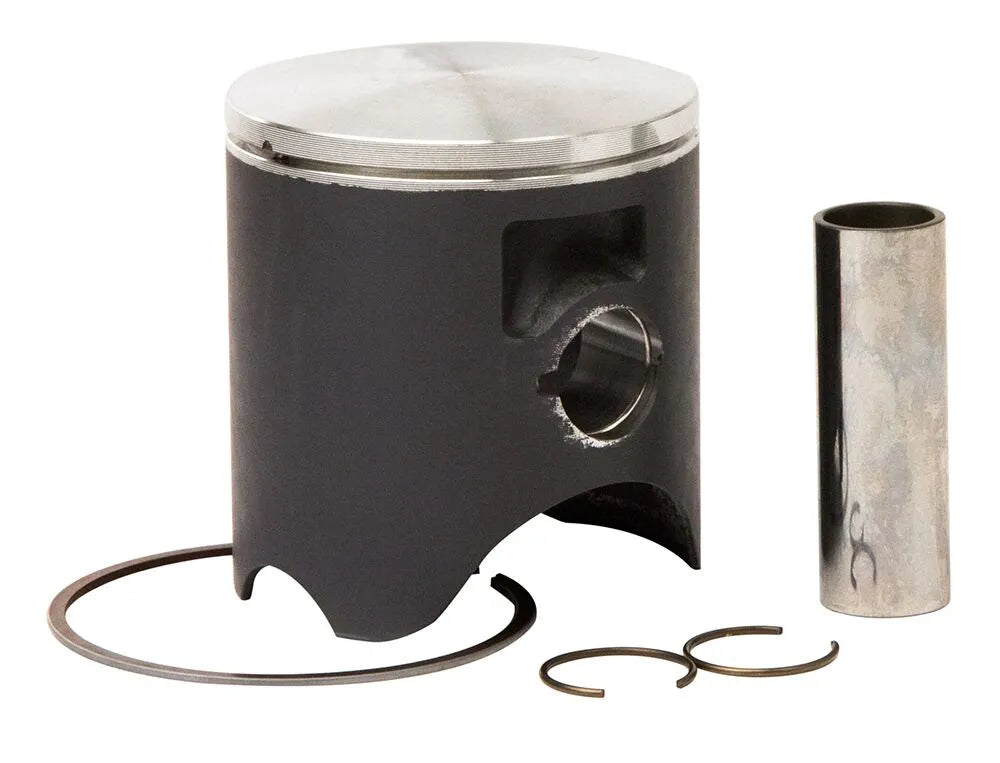

This Vertex top end piston kit features a cast piston meticulously crafted to replicate the original equipment (OE) form, ensuring a precise fit and reliable performance. Constructed from gravity-cast aluminum alloy with an 18% silicone content, the piston achieves an optimal balance of lightweight design and robust strength. Each piston undergoes a T-5 heat treatment, further enhancing its durability and resistance to wear. The piston skirt is coated with a high-tech Molybdenum Disulphide coating, reducing friction for faster break-in and extended piston life. This standard size D piston kit is designed for 125cc 2-stroke engines with a 54.00 mm bore size and 53.97 mm piston diameter. The piston rings are made from steel with a nitride coating for superior sealing and wear resistance. Restore your engine's performance with this complete and reliable piston kit from Vertex.

Features & highlights

• Cast piston replicates original OE form for precise fit and reliable performance.
• T-5 heat treatment enhances piston durability and wear resistance.
• Molybdenum Disulphide coated piston skirt reduces friction for faster break-in.
• Gravity-cast aluminum alloy with 18% silicone content provides lightweight strength.

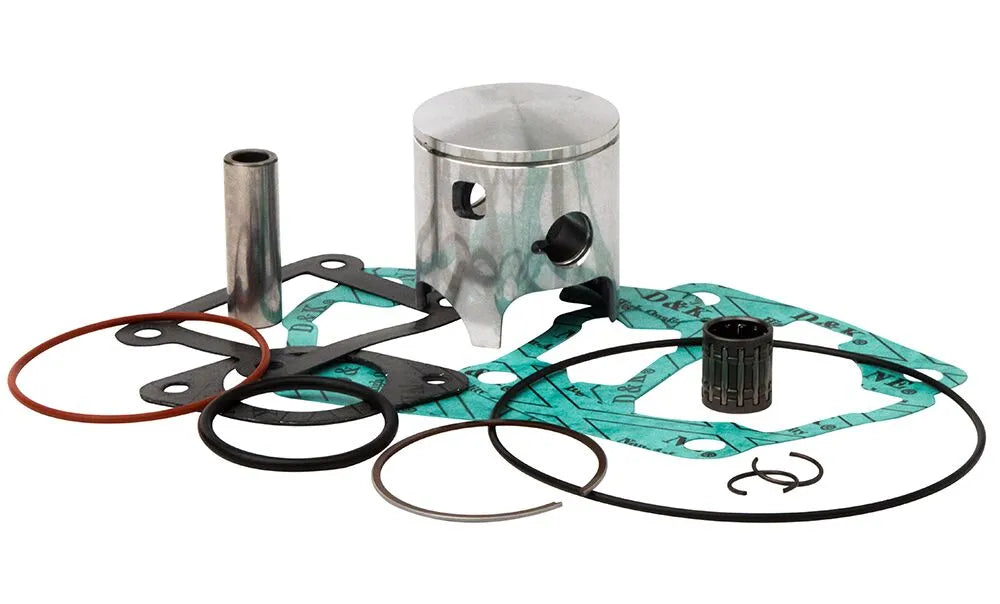

• Complete top end kit includes piston, rings, wrist pin, circlips, and top end gaskets.
• Nitride coated steel rings offer superior sealing and longevity.

Technical specifications

• Brand: Vertex
• Product Name: Piston Kit
• Type: Top End
• Engine Type: 2-Stroke
• Displacement: 125 cc
• Bore Size: 54.00 mm
• Piston Diameter: 53.97 mm
• Piston Material: Cast Aluminum Alloy
• Piston Size: Standard Size D
• Ring Material: Nitride Coated Steel

Important to know

This kit includes all necessary components for a top end rebuild. Please ensure compatibility with your specific engine model before installation.
