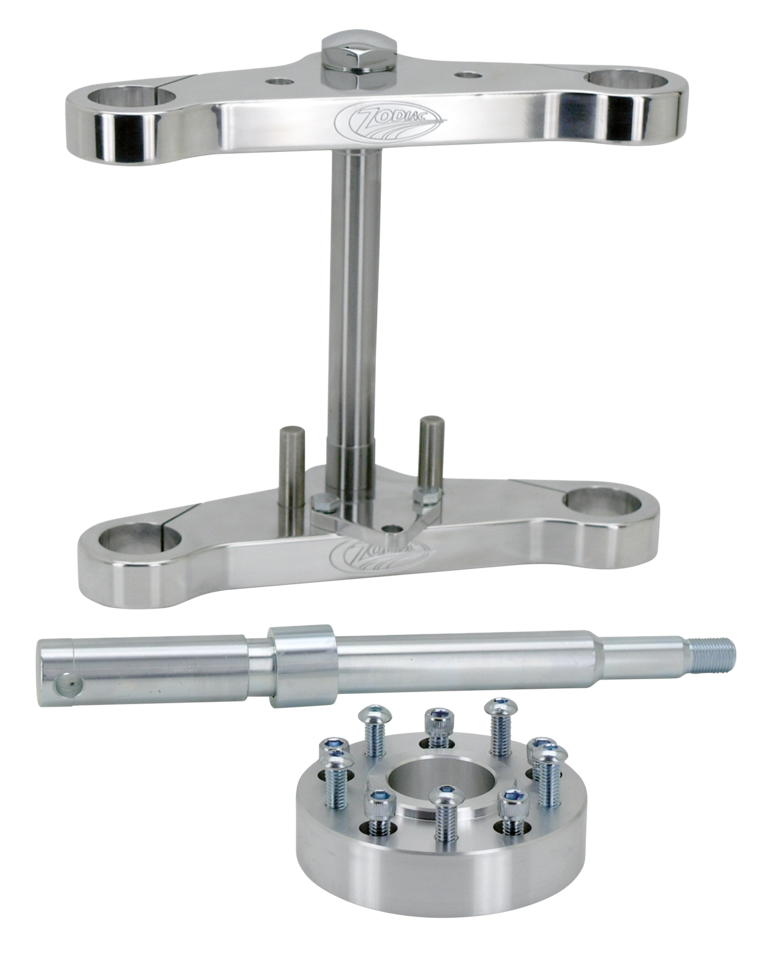

Zodiac Fat Plate Rev"o"lution Mid Glide Kit for Fx, Fxr, Dyna & Sportster – Front Forks

These billet aluminum kits have the same features as our other Rev"O"lution Mid Glide kits but as an extra they feature "extra thick" 25mm top and bottom plates. Available in stock, 3 degrees and 6 degrees rake. Raked kits allow the use of 4 to 10" (10 to 25cm) over-stock fork tubes, still keeping the bottom frame tube level with the ground, giving your bike that extended look. Machined from billet aircraft quality aluminum and include all necessary hardware and a bracket for a bottom mount headlight. The kit for 1977-1986 FX with 35mm fork tubes and includes two disc spacers. This kit can also be used for Sportster models with 35mm forks if steering stop is modified and neck post is spaced to correct length. For all other dual disc applications you have to order one extra spacer.
Note: If retaining stock fender, spacers will be required.

Fits XL883L Low & SuperLow 2008-2020 XL883R Roadster 2008-2015 XL1200C 2008-2010 XL883N Iron 2009-2022 XL1200V Seventy-Two 2012-2013 Order a wheel spacer ZPN 733118 for ABS equipped models separately, Complete kit, stock rake, polished

GZP Fat Plate Alu W-G KIT XL08-up

• Category: Wide Glide Kits & Triple Trees
• Approval: TÜV
