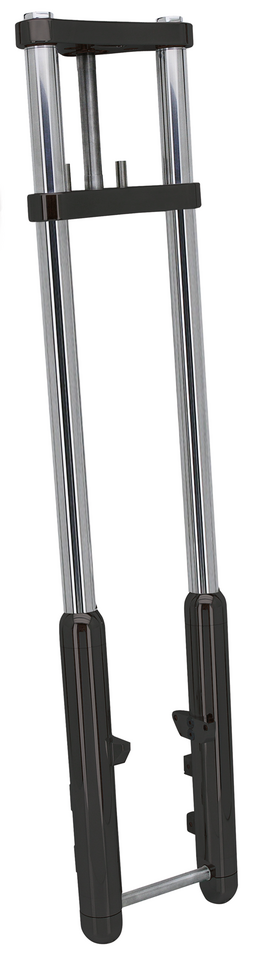

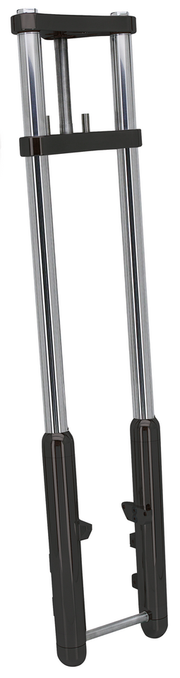

Zodiac Slim Bubba Front Forks

The guys at Zodiac noticed the trend of the latest custom bikes; Narrow is cool too. This resulted in a special Narrow version of the famous Bubba front fork called the Slim Bubba. With a pitch of 195mm it is just wide enough to take a Narrow Glide front hub and a stock or stock style brake caliper. Triple trees and sliders are billet aluminum with a mirror shine polished or polished black finish. With its classic round lines the fork has a nostalgic appearance, but with modern day handling characteristics. The upper triple tree clamp is 1 1/8" (29mm) thick, the lower triple tree clamp measures 1 5/16" (34mm). The fork sliders have a very impressive diameter of 2 3/8" (60mm), feature fender brackets and mounting blocks to take both left and right side calipers. Conversion brackets that take 1984-1999 style aftermarket calipers or 2000 to present style OEM or aftermarket brake calipers can be ordered separately. The front wheel axle has a hidden mount for extra sleek looks and the fork sliders are topped off with billet aluminum dust covers. Forks are available in various lengths and with 0, 3, and 6 degrees raked triple trees and include 3 different fork stops to work with almost any stock or aftermarket frame. A bottle of fork oil is included with each set. Installation on 2006-2017 Dyna requires the separate purchase of a longer neck post ZPN 600126.

Note: Length is measured from the underside of the upper triple tree clamp to the center of the wheel axle. 4" over stock FL is the same as stock FXWG.
Fork oil change: Per fork leg 300cc 20W20 Spectro Type-E Light fork oil for street use, or 300cc SAE 40 Extra Heavy Duty Spectro oil for high performance and racing use.

Slim Blk Bubba Front fork 6 degr +16"lng

• Category: Front Forks
