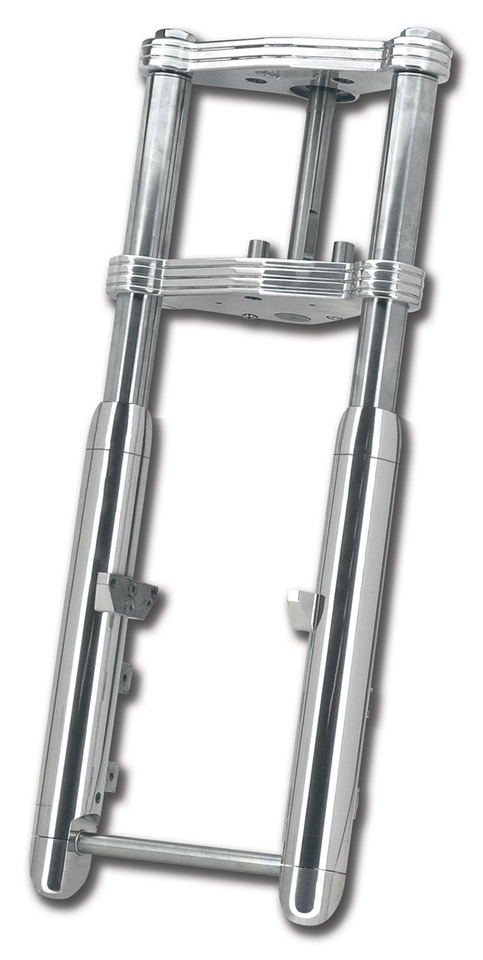

Zodiac Ton Pels Signature "naked Bubba" Front Forks

Ton has put the Fat Bubba on a diet! The result, the Naked Bubba. Like the original Fat Bubba's they feature massive Triple Tree clamps, large diameter bottom sliders and Hidden Axle mount. Triple tree and sliders are machined from billet aluminum and have a mirror shine polished or polished black finish. The upper triple tree clamp is 1 1/8" (29mm) thick, the lower triple tree clamp measures 1 5/16" (34mm). The fork sliders have a very impressive diameter of 2 3/8" (60mm) and feature fender brackets, as well as dual caliper mount. Fork sliders are topped off with billet aluminum dust covers. Conversion brackets that take 1984 thru 1999 style or 2000 to present style OEM or aftermarket brake calipers are available but must be ordered separately. Other conversion brackets must be custom made. The front wheel axle has a hidden mount for extra sleek looks. Forks are available in +2", +3", +4", +6", + 8", +12", +14" and +16" over stock FL length (actual fork leg length is also listed) and with 0, 3, and 6 degrees raked triple tree. These Fat Bubba forks come complete with 3 different fork stops to work with almost any stock or aftermarket frame. A bottle of fork oil is included with each set.

Note: Length is measured from the underside of the upper triple to the center of the wheel axle. Add 29 mm to calculate total fork length.

Fork oil change: Per fork leg 300 cc 20W20 Spectro Type-E Light fork oil for street use, or 300 cc SAE 40 Extra Heavy Duty Spectro oil for high performance and racing use.

Naked Bubba Front fork 3 degr. +3" FL

• Category: Front Forks
• Approval: TÜV
