Zodiac's Sportail Sportster Frame for Up to 250 Tires – Frame & Rear Suspension
Zodiac's Sportail Sportster Frame for Up to 250 Tires – Frame & Rear Suspension
Bekræftet kompatibel med
Denne del er ikke kompatibel med . Se kompatible modeller i tabellen nedenfor.
Vælg dit køretøj for at se om det passer
Produktbeskrivelse
Produktbeskrivelse
We have created a Sportster frame with the same sleek design as our Wide Tail Softail frame. The Sportail frame features a "Stretched Low-Rider" look, is made from thick wall quality tubing and TIG-welded for improved strength and road holding without disturbing the lines. To obtain the sleek stretched Low-Rider look the steering head is raked to 38 degrees. This requires a 4" to 8" overstock fork depending on the wheel and tire size used. The engine is located with no offset in the frame and a rear frame section wide enough to accept extra wide tires. The Sportail SuperAss, is wide enough to take up to 250 wide rear tires. In combination with final belt drive. The SuperAss requires an off-set front pulley or a spacer behind the front pulley. Pulley cover requires spacing. The length of the frame requires the use of a drive belt with approx. 135 teeth. Mounts for a Big Twin side stand and Big Twin forward controls as well as 1974 to present Sportster forward controls are welded in place. Stock style Narrow or Wide Glide forks as well as our state-of-the-art Ceriani forks can be used with the frame, it will also accept many other Custom front forks. The frame will take any 1974-1985 Ironhead Sportster engines as well as 4 Speed and 1986-2003 style 5 Speed Evolution Sportster engines. Because of the right hand final drive the stock style Softail oil tank does not fit, therefore our special Sportail style oil tank or a custom made oil tank such as our Custom Round oil tank must be used. The frame is designed to take Softail type parts and accessories such as Flat Side tanks, forward controls, seats and 1989-1999 Softail shock absorbers. Due to the completely different shape of the swingarm a Rigid Frame type rear caliper kit must be used. 1989-1999 Softail shock absorbers can be found elsewhere in this section.
Note: Zodiac Sportail frames are approved as a replacement frame for Harley-Davidson Sportster motorcycles. They may be used in combination with our approved GCB front forks and/or any other approved components.

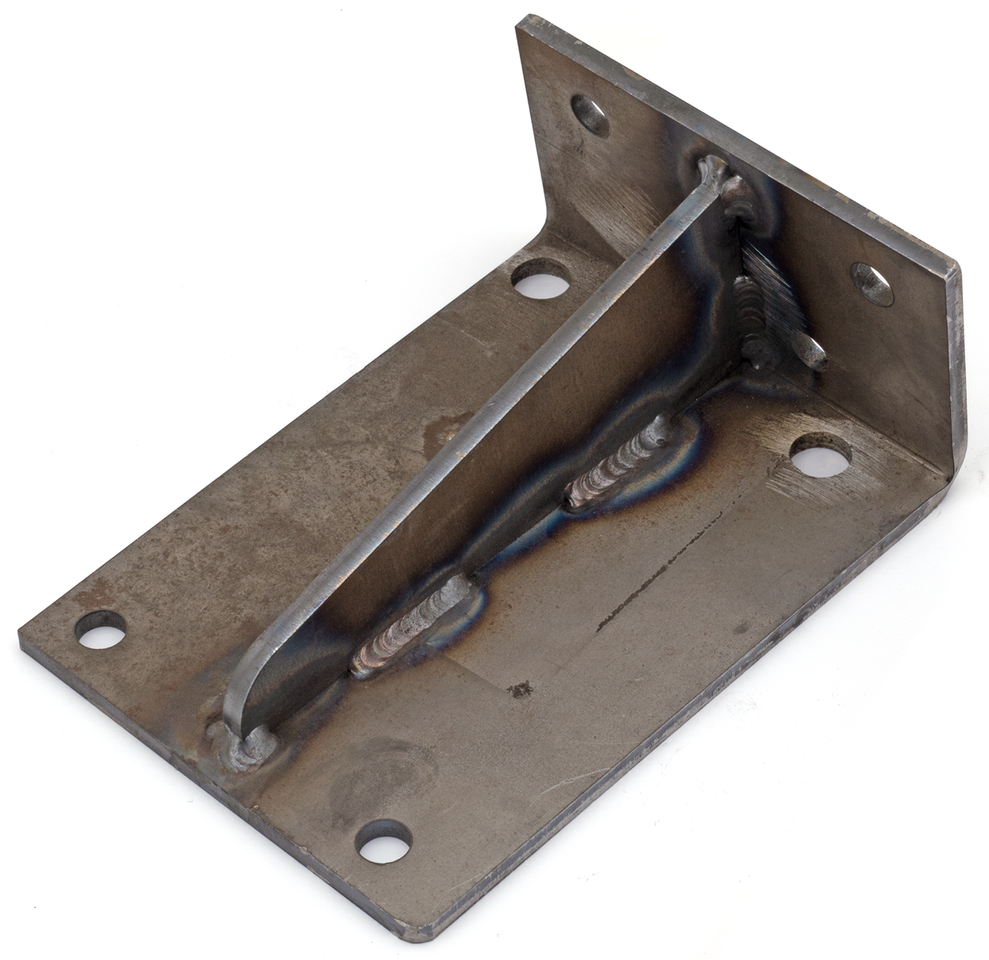

Replacement kit parts, Rear motor mount
Sportail Transmission support
- Category: Frames
